RADWAG PS.X2, PS.X2.M Precision Balances
Buy RADWAG products from NANOSSR at the best value.
|
SKU # |
WL-218-1002 |
WL-218-0015 |
WL-218-0020 |
WL-218-0022 |
WL-218-0024 |
WL-218-0026 |
WL-218-0127 |
|
Model # |
PS 200/2000.X2 |
PS 210.X2 |
PS 360.X2 |
PS 600.X2 |
PS 750.X2 |
PS 1000.X2 |
PS 2100.X2.M |
|
Maximum Capacity (g) |
200/2000 |
210 |
360 |
600 |
750 |
1000 |
2100 |
|
Readability (mg) |
1/10 |
1 |
1 |
1 |
1 |
1 |
10 |
|
SKU # |
WL-218-0088 |
WL-218-0134 |
WL-218-0103 |
WL-218-0104 |
WL-218-0102 |
WL-218-0101 |
|
Model # |
PS 3000.X2 |
PS 3500.X2.M |
PS 4500.X2.M |
PS 6100.X2.M |
PS 8100.X2.M |
PS 10100.X2.M |
|
Maximum Capacity (g) |
3000 |
3500 |
4500 |
6100 |
8100 |
10100 |
|
Readability (mg) |
1 |
10 |
10 |
10 |
10 |
10 |

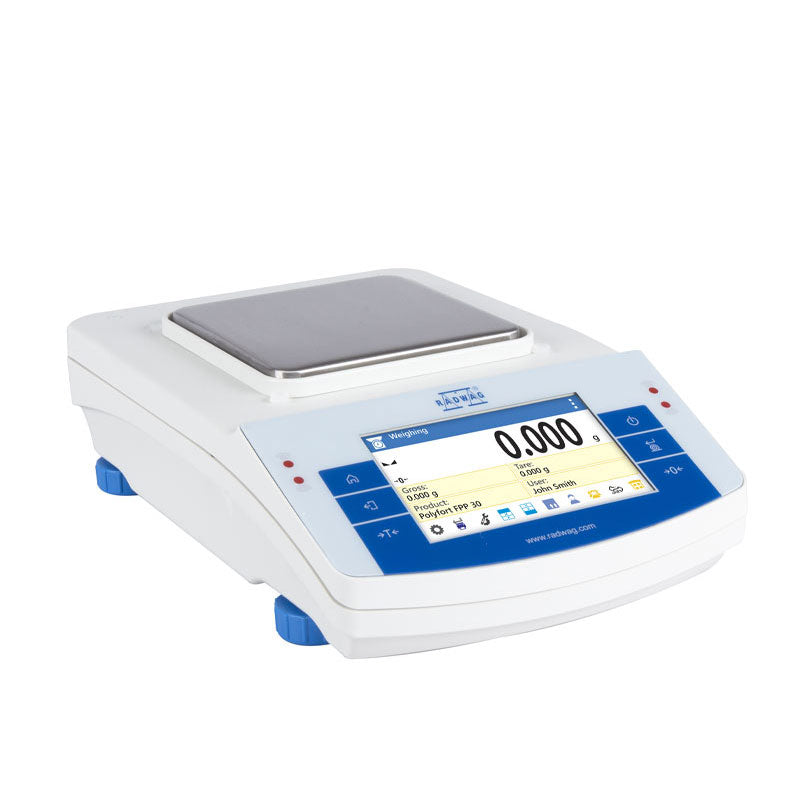

Series PS.X2
The PS.X2 series represents a new advanced level for precision balances.
The X2 series balances feature the latest generation capacitive display providing the maximum comfort of use, available right at your fingertips. Ease of operation, clear menu and practical arrangement of the display guarantee the best ergonomics for your everyday tasks. A wide array of available interfaces facilitate selection of the most optimal means for communication.
Personalization taken to the next level
The X2 is the only balance available on the market that provides a user with the option to design display using wide selection of widgets. Customised display of X2 series offers direct access to the results of your work and other important information directly from the home screen.
The X2 series balances offer unlimited possibilities for cooperation with external devices, providing printing, copying, archiving and data transfer.
Built-in IR sensors allow numerous operations (e.g. tarring, transmitting the result to a printer or selecting successive steps of a particular process, etc.) to be performed handsfree, by simply moving a hand across the sensor. The housing is made of plastic, and the pan is made of stainless steel.
Databases in X2 series balances
The data is registered in 7 databases:
- Users (up to 10 users),
- Products (up to 5 000 products),
- Weighments (up to 50 000 weighments),
- Packaging (up to 100 packaging types),
- Formulas (up to 100 formulas),
- Clients (up to 1000 clients),
- ALIBI memory (up to 512 000 weighments).
The X2 series features option of making reports on formulas (up to 500 reports).
Weighing Data Management
USB interface facilitates quick transfer and copying of any results of your work (measurements, reports, databases) to other balances. Network management of the weighing data increases effectivity, productivity and safety of the important data to the maximum.
ALIBI Memory
The X2 series balances feature ALIBI memory that is a warranty for safety and automatic recording of your measurements. Options such as data preview, copying and archiving are available to users as well.
The ALIBI memory allows to record up to 500 000 weighment records.
Datasheet
|
Model No. |
PS 200/2000.X2 |
PS 210.X2 |
PS 360.X2 |
PS 600.X2 |
PS 750.X2 |
PS 1000.X2 |
|
Metrological parameters |
||||||
|
Maximum capacity [Max] |
200 / 2000 g |
210 g |
360 g |
600 g |
750 g |
1000 g |
|
Minimum load |
20 mg |
20 mg |
20 mg |
20 mg |
20 mg |
20 mg |
|
Readability [d] |
1/10 mg |
1 mg |
1 mg |
1 mg |
1 mg |
1 mg |
|
Verification unit [e] |
10/100 mg |
10 mg |
10 mg |
10 mg |
10 mg |
10 mg |
|
Tare range |
-2000 g |
-210 g |
-360 g |
-600 g |
-750 g |
-1000 g |
|
Standard repeatability [5% Max] |
05/5 mg |
0.5 mg |
0.5 mg |
0.5 mg |
0.5 mg |
0.5 mg |
|
Standard repeatability [Max] |
1/10 mg |
1 mg |
1 mg |
1.5 mg |
1.5 mg |
1.5 mg |
|
Standard minimum weight (USP) |
1 g |
1 g |
1 g |
1 g |
1 g |
1 g |
|
Standard minimum weight (U=1%, k=2) |
0.1 g |
0.1 g |
0.1 g |
0.1 g |
0.1 g |
0.1 g |
|
Linearity |
±20 mg |
±2 mg |
±2 mg |
±3 mg |
±3 mg |
±3 mg |
|
Stabilization time |
2/1.5 s |
2 s |
2 s |
2 s |
2 s |
2 s |
|
Adjustment |
internal (automatic) |
|||||
|
OIML Class |
II |
II |
II |
II |
II |
II |
|
Physical parameters |
||||||
|
Leveling system |
Manual |
|||||
|
Display |
5” graphic color touchscreen |
|||||
|
Delivery components |
Balance, weighing pan, weighing pan shield, grounding bumper ×1, bumper ×3, power supply. |
|||||
|
Weighing pan dimensions |
128×128 mm |
|||||
|
Packaging dimensions |
475×380×345 mm |
|||||
|
Net weight |
4.33 kg |
3.54 kg |
3.99 kg |
3.99 kg |
3.99 kg |
4.01 kg |
|
Gross weight |
5.5 kg |
5 kg |
5 kg |
5.5 kg |
5 kg |
5 kg |
|
Construction |
||||||
|
Protection class |
IP 43 |
|||||
|
Components and software |
||||||
|
Database capacity |
7 |
7 | 7 | 7 | 7 | 7 |
|
Features of use |
||||||
|
Touch-free operation |
2 IR Sensors |
|||||
|
Communication interface |
||||||
|
Communication interface |
2×RS232¹, USB-A, USB-B, Ethernet, Wi-Fi® |
|||||
|
Electrical parameters |
||||||
|
Power supply |
Adapter: 100 – 240V AC 50/60Hz 0.6A; 12V DC 1.2A |
|||||
|
Balance: 12 – 15V DC 0.8A max |
||||||
|
Power consumption |
4 W |
|||||
|
Environmental conditions |
||||||
|
Operating temperature |
+10 — +40 °C |
|||||
|
Ambient conditions monitoring (option) |
THBR 2.0 System, THBR BOX, THB P, THB W, THB S |
|||||
|
Relative humidity |
40% — 80% |
|||||
|
Model No. |
PS 2100.X2.M |
PS 3000.X2 |
PS 3500.X2.M |
PS 4500.X2.M |
PS 6100.X2.M |
PS 8100.X2.M |
PS 10100.X2.M |
|
Metrological parameters |
|||||||
|
Maximum capacity [Max] |
2100 g |
3000 g |
3500 g |
4500 g |
6100 g |
8100 g |
10100 g |
|
Minimum load |
500 mg |
- |
500 mg |
500 mg |
500 mg |
500 mg |
- |
|
Readability [d] |
10 mg |
1 mg |
10 mg |
10 mg |
10 mg |
10 mg |
10 mg |
|
Verification unit [e] |
100 mg |
- |
100 mg |
100 mg |
100 mg |
100 mg |
- |
|
Tare range |
-2100 g |
-3000 g |
-3500 g |
-4500 g |
-6100 g |
-8100 g |
-10100 g |
|
Standard repeatability [5% Max] |
5 mg |
0.6 mg |
5 mg |
5 mg |
5 mg |
5 mg |
5 mg |
|
Standard repeatability [Max] |
8 mg |
1.5 mg |
8 mg |
8 mg |
8 mg |
10 mg |
12 mg |
|
Standard minimum weight (USP) |
10 g |
1.2 g |
10 g |
10 g |
10 g |
10 g |
10 g |
|
Standard minimum weight (U=1%, k=2) |
1 g |
0.12 g |
1 g |
1 g |
1 g |
1 g |
1 g |
|
Linearity |
±20 mg |
±6 mg |
±20 mg |
±20 mg |
±20 mg |
±20 mg |
±20 mg |
|
Stabilization time |
1.5 s |
3 s |
1.5 s |
1.5 s |
1.5 s |
1.5 s |
1.5 s |
|
Adjustment |
internal (automatic) |
||||||
|
OIML Class |
II |
- |
II |
II |
II |
II |
- |
|
Physical parameters |
|||||||
|
Leveling system |
Manual |
||||||
|
Display |
5” graphic color touchscreen |
||||||
|
Delivery components |
Balance, weighing pan, weighing pan shield, power supply |
Balance, weighing pan, weighing pan shield, grounding bumper ×1, bumper ×3, power supply. |
Balance, weighing pan, weighing pan shield, power supply |
||||
|
Weighing pan dimensions |
195×195 mm |
128×128 mm |
195×195 mm |
||||
|
Device dimensions |
- |
- |
- |
333x206x107 mm |
|||
|
Packaging dimensions |
475×380×345 mm |
||||||
|
Net weight |
4.33 kg |
4.33 kg |
4.33 kg |
4.33 kg |
4.33 kg |
4.33 kg |
4.33 kg |
|
Gross weight |
5.5 kg |
5.5 kg |
5.5 kg |
5.5 kg |
6.5 kg |
5.5 kg |
5.5 kg |
|
Construction |
|||||||
|
Protection class |
IP 43 |
||||||
|
Components and software |
|||||||
|
Database capacity |
7 |
7 |
7 |
7 |
7 |
7 |
7 |
|
Features of use |
|||||||
|
Touch-free operation |
2 IR Sensors |
||||||
|
Communication interface |
|||||||
|
Communication interface |
2×RS232¹, USB-A, USB-B, Ethernet, Wi-Fi® |
||||||
|
Electrical parameters |
|||||||
|
Power supply |
Adapter: 100 – 240V AC 50/60Hz 0.6A; 12V DC 1.2A |
||||||
|
Balance: 12 – 15V DC 0.8A max |
|||||||
|
Power consumption |
4 W |
||||||
|
Environmental conditions |
|||||||
|
Operating temperature |
+10 — +40 °C |
||||||
|
Ambient conditions monitoring (option) |
THBR 2.0 System, THBR BOX, THB P, THB W, THB S |
||||||
|
Storage temperature |
- |
- |
- |
-20 — +50 °C |
- |
-20 — +50 °C |
|
|
Relative humidity |
40% — 80% |
||||||
*The power supply can be connected to the socket on the back of the balance housing or to the terminal.
