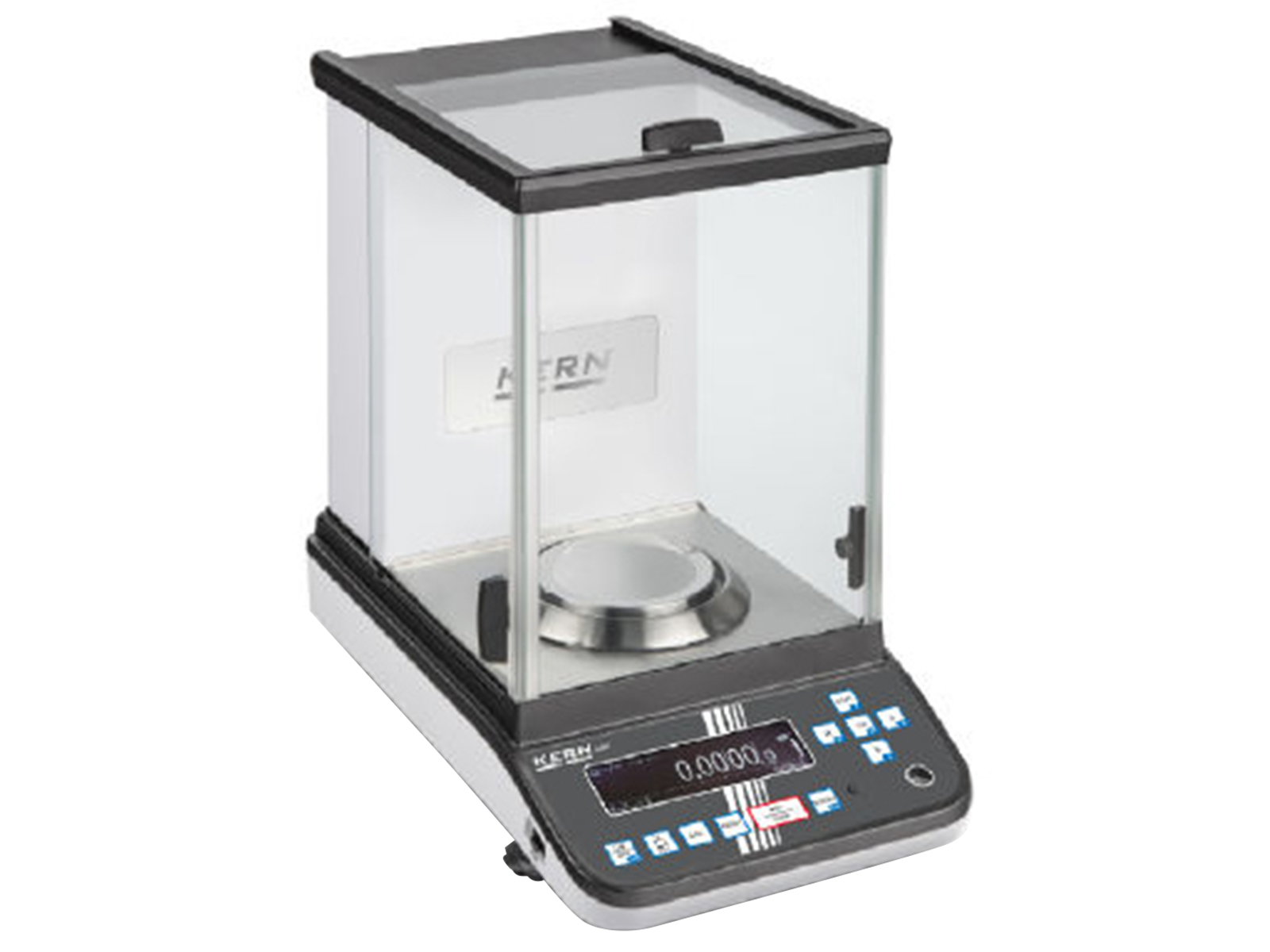

Kern ABP Analytical Balance

Buy Kern products from NANOSSR at the best value.

NANOSSR offers ABP Analytical Balance from KERN & SOHN GmbH. They are premium analytical balance with the latest Single-Cell Generation for extremely rapid, stable weighing results.

Country of Origin: Made in Germany

Manufacturer:  KERN & SOHN GmbH

Main Features:

  • Optional: Extremely fast ionization process, thanks to the latest generation of KERN ionization technology to neutralize electrostatic charge for fixed installation in the analytical balance. Particularly convenient handling as you no longer need a separate device. Simply enable the ionizer fan at the push of a button. Suitable for all models, see accessories to the right
  • Bright OLED display with large viewing angle for the very best readout from a wide range of lines of sight
  • RS 232 and USB interfaces for the transfer of weighing data to PCs, tablets, printers as well as for the connection of external devices, such as barcode scanners (option), numeric keypad (option), etc.
  • GLP/ISO record keeping: professional, detailed GLP-Protocol, so that the balance is completely compliant with the relevant standard requirements in accordance with ISO, GLP and GMP
  • This new generation of analytical balances combines the highest level of precision with large weighing ranges. Thanks to the new Single-Cell Generation, the weighing result is displayed in a fraction of the time with comparable models. Together with the intuitively structured menu, this means that you can work efficiently and rapidly
  • Navigation pad for super quick navigating through the menus
  • Automatic internal adjustment in the case of a change in temperature > 1 °C and time-controlled every 4 hours, guarantees high degree of accuracy and makes the balance independent of its location of use
  • The Minimum weight of sample can be manually stored in the device or automatically calculated. For weighing's below this value, the balance issues a warning message
  • Mains adapter for voltage supply to the KERN CE, can be fitted on the DIN rail
  • Simple recipe weighing and documenting with a combined tare/print function. In addition, the mixing ingredients for the recipe are numbered automatically and printed out with their corresponding number and weight value
  • Individual user settings for up to 10 users can be saved: user name/user number (can be printed out or added to the record for each process), password, menu language, user profiles, accessing user settings via barcode, additional guest mode for users who are not logged in eg. balance adjustment, changing, settings or conditioning or modification of a recipe only by the authorized person & performing the formulation by the user
  • U.S. FDA 21 Part 11: assists you in data integrity in accordance with U.S. FDA 21 Part 11 (for example weighing result, sample ID, user name, scales ID, ...)
  • Menu language DE, GB
  • Automatic data output to the PC/printer each time the balance is steady
  • Large glass draught shield with 3 sliding doors for easy access to the items being weighed
  • Multi-function weighing plate included with delivery, minimizes the effect of currents of air in the weighing chamber and therefore significantly improves the stabilization time and repeatability. In addition samples, sample paper, PCR containers, micro centrifuge tubes and many other items which protrude can be easily fixed in place and weighed easily
  • Protective working cover included with delivery

Single-cell advanced technology

  • Fully automatic manufactured weighing cell from one piece of material
  • Stable temperature behaviour
  • Short stabilisation time: Steady weight values within approx. 2 sec (Models with [d] = 0,1 mg), approx. 8 sec (Models with [d] = 0,01 mg) under laboratory conditions
  • Shock proof construction
  • High corner load performance

Accessories:

  • Protective working cover
  • Draft shield rear panel
  • Weighing table
  • USB barcode scanner
  • Internal draught shield

For accessories, please contact us so we can help you choose appropriate products for your needs.

    Technical Specifications:

    Parameter

    ABP1004M

    ABP1005DM

    ABP2004M

    ABP2005DM

    ABP3004M

    ABP1005M

    ABP2005M

    Readability

    0.100 mg

    0.010 mg | 0.100 mg

    0.100 mg

    0.010 mg | 0.100 mg

    0.100 mg

    0.010 mg

    Weighing range (max)

    120 g

    52 g | 120 g

    220 mg

    102 g |220 g

    320 g

    135 g

    200 g

    Minimum load (Min)

    10 mg

    1 mg

    10 mg

    1 mg

    10 mg

    1 mg

    Verification class

    I

    Verification value

    1 mg

     1 mg |1 mg

    1 mg

    1 mg |1 mg

    1 mg

    Repeatability

    0.100 mg

    0.020 mg | 0.100 mg

    0.100 mg

    0.050 mg | 0.100mg

    0.200 mg

    0.050 mg

    0.015 mg | 0.030 mg | 0.050 mg

    Linearity

    0.200 mg

    0.050 mg | 0.200mg

    0.200 mg

    0.100 mg | 0.200 mg

    0.300 mg

    0.100 mg

    Stabilization time

    2 sec.

    8 sec. | 2 sec.

    2 sec.

    8 sec. | 2 sec.

    2 sec.

    8 sec.

    Adjustment weight

    Internal calibration (manual) Internal calibration (auto)

    Warm-up time

    8 hrs.

    8 hrs. | 8 hrs.

    8 hrs.

    8 hrs. | 8 hrs.

    8 hrs.

    Weighing units

    Ct, g, mg

    Weighing surface diameter (stainless steel)

    91 mm

    Dimensions of the housing (W x D x H)

    213 mm x 433 mm x 344 mm

    595 mm x 380 mm x 540 mm

    213 mm x 433 mm x 344 mm

    Weighing space  (W x D x H)

    166 mm x 156 mm x 220 mm

    Net weight (kg)

    8

    Operating temperature

    10°C ~ 30°C

    Operating Humidity

    80 % relative (not condensing)

    Input voltage

    220 V - 240 V AC, 50 Hz

     * For applications that require verification, please order verification at the same time

    About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!

    NANOSSR is an authorized distributor for KERN & SOHN GmbH.
