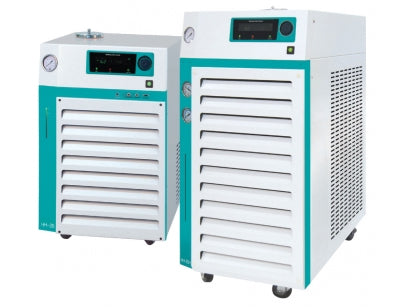

Jeio Tech Lab Companion Chiller (Recirculating Coolers) (High Temp. Precision)
Buy Lab Companion products from NANOSSR at the best value.
NANOSSR offers Lab Companion Autoclaves (Vertical Type) from Jeio Tech. Broad temperature ranging up to 80°C for various applications. Also integrated heaters greatly provides high temperature stability. Also integrated heaters greatly provides high temperature stability.
Country of Origin: Made in South Korea
Manufacturer: Jeio Tech
Main Features:
- Wide temperature range from -20°Cto 80°C.
- High cooling capacity up to 7.1kW at 20°C.
- Powerful circulating pumps up to to70L/min., 6 bar.
- Precise temperature stability ± 0.1°C(at 15°C) with integrated heaters.
- Refrigerating system is designed to reduce energy consumption and maximize refrigerating efficiency.
Accessories:
- Barbed fittings
- Connectors / Adapters
- One touch adapters set
- Flexible fittings
- Tubings
- Tubing insulations
- Flexible tubing
- Tube clamps
- Distributing fittings
Technical Specifications:
| Model | HH-15 | HH-20 | HH-25 | HH-35 | HH-45H 2) | HH-55H 2) | |
|---|---|---|---|---|---|---|---|
| SKU# | AAH67015K (50/60Hz) |
AAH67021K | AAH67031K | AAH67041K | - | - | |
| Electric requirement (230V, 60Hz) | 15A | 16A | 27A | 31A | |||
| SKU# | AAH67015K (50/60Hz) |
AAH67025K | AAH67035K | AAH67045K | - | - | |
| Electric requirement (230V, 50Hz) | 14.5A | 15.5A | 25A | 30A | |||
| SKU# | - | - | - | - | AAH67159K | AAH67169K | |
| Electric requirement (380V, 60Hz) | 18.3 | 19.8 | |||||
| SKU# | - | - | - | - | AAH67150K | AAH67160K | |
| Electric requirement (380V, 50Hz) | 17.8 | 19.3 | |||||
| Temperature 1) (bath fluid : ethylene glycol mix 1:1 water) |
Working temperature range (℃ / ℉) |
-20 to 80 / - 4 to 176 | |||||
| Temperature stabilityat 15℃, (±℃ / ℉) |
0.1 / 0.2 | ||||||
| Cooling capacity (bath fluid : ethylene glycol mix 1:1 water) |
at 80℃ (kw) | 2 | 2.5 | 3.5 | 4 | 6 | 7.5 |
| at 40℃ (kw) | 0.9 | 1 | 2.4 | 2.5 | 4.5 | 5 | |
| at 20℃ (kw) | 1.45 | 1.8 | 2.5 | 3.3 | 6.5 | 7.1 | |
| at 0℃ (kw) | 0.86 | 1.15 | 1.1 | 1.7 | 3 | 4.1 | |
| at -20℃ (kw) | 0.3 | 0.4 | 0.4 | 0.55 | 1.2 | 1.5 | |
| Heating capacity(kw) | 2 | 4 | 8.4 | ||||
| Pump | Max. flow rate (L / min, gal / min) |
40 / 10.6 | 70 / 18.5 | ||||
| Max. pressure (bar / psi) |
3.3 / 47.9 | 6 / 87.02 | |||||
| Dimension | Max. filling capacity (L, cu ft) |
13.5 / 0.47 | 25 / 0.88 | 39 / 1.37 | |||
| For tubing dia. (mm / inch) |
20 / 3/4 | ||||||
| Filling inlet (Ø, mm / inch) |
120 / 4.7 | ||||||
| Overall (WxDxH, mm / inch) |
515×715× 835/ 20.3×28.1×32.9 | 550×900×1140/ 21.7×35.4×44.9 | 605×1045×1300/ 23.8×41.4×51.2 | ||||
| Net weight (kg / Ibs) |
92 / 202.8 | 93 / 205 | 142 / 313 | 147 / 324 | 171±10/ 377±22 | 176±10/ 388±22 | |
About Jeio Tech: Jeio Tech products are put through rigorous quality control from the most basic metal processing to final inspections. Based on over 28 years of technical experience in instrument manufacturing, their highly integrated team of engineers strive to deliver outstanding quality to their clients. Their professional know-how will always keep their reputation as the primary partner for the customers research needs.
NANOSSR is an authorized distributor for Jeio Tech.
