High-Pressure EC, 25 bar, 50 mL - High-Pressure Single-Compartment Electrochemical Cell
Buy Redox.me products from NANOSSR at the best value.

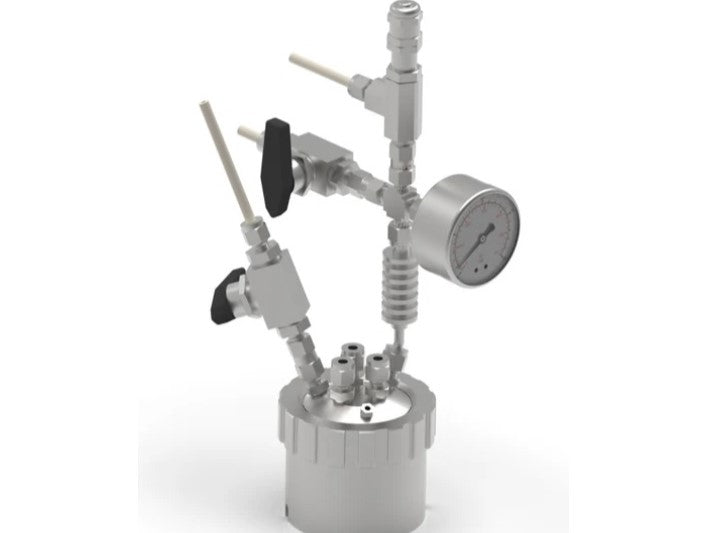

The High-Pressure Electrochemical Cell is a sophisticated apparatus engineered to facilitate advanced research in electrochemistry under elevated pressure and temperature conditions. The cell is capable of withstanding pressures up to 25 bar and temperatures up to 200 ⁰C, allowing researchers to investigate electrochemical processes under hydrothermal conditions or using a hot pressurized environment for organic solvents as reaction media. It is a single-compartment cell that accommodates various electrode setups, including standard 2- or 3-electrode configurations and custom arrangements tailored to specific experimental requirements. The cell is designed to accommodate various electrodes and sample types, including solids, liquids, and gases, enabling comprehensive studies across different material systems.
The cell is constructed from high-quality materials such as Stainless Steel 316L (outer body), PEEK (liner), and FFKM elastomer (O-rings), ensuring robustness and reliability even under harsh experimental conditions. Cell material system is compatible with the following material systems: aqueous electrolytes in a full pH range, organic solvents (sulfoxides, amides, ethers, alcohols, aromatic), organic and inorganic salts (including fluorinated anions, ammonium), gases (N2, Ar, H2) – PEEK, FFKM O-Rings The cell is equipped with three 6 mm dia. electrode ports, two 1/4 in. OD tube gas/liquid inlet/outlet, and assembly of a manometer and safety relief valve (25 bar) mounted on the cooling tower. Additionally, there is a 1/8 in. OD port for a temperature probe inside the PEEK liner. The cell is compatible with the high-pressure working electrode, high-pressure counter electrode, and high-pressure reference electrode. Unused electrode ports can be terminated with high-pressure plug.
Application note
Catalysis plays a pivotal role in various industrial processes, from petroleum refining to pharmaceutical synthesis. Understanding catalytic mechanisms under realistic conditions is crucial for optimizing catalyst performance and developing efficient processes. The High Pressure Electrochemical Cell offers a sophisticated platform for studying catalytic reactions under elevated pressure and electrochemical environments simultaneously. The cell is typically used to investigate the effect of pressure on electrochemical kinetics and mechanisms, study the electrochemical behavior of materials under high-pressure conditions for applications in energy storage, catalysis, and corrosion, and explore novel electrode materials and electrolyte systems tailored for high-pressure electrochemical devices.
Electrodes are not included in the cell and should be added to the quotation separately.
Specification
Maximum operating pressure: 25 bar
Total volume of PEEK liner: 50 mL
Recommended volume of liquid: 30 - 35 mL
Maximum operating temperature: 200 ⁰C
Port for temperature probe: 1/8 in. (3.175 mm)
Electrode port diameter: 6 mm
Number of electrode ports: 3
Other port diameters: 1/4 in. (6.35 mm)
Pressure gauge dial range: 0 - 40 bar
Recommended tubing: 1/4 in. OD, 1/8 in. ID PEEK tube
Intrastat Data
HS Code: 90309000
Country of Origin: Sweden
NET weight: 2500g
Setup includes
1 x pressure vessel, SS 316L
1 x PEEK liner 50 mL
1 x PEEK lid
1 x set of PEEK screws
1 x cell lid, SS 316L
1 x screw cup, SS 316L
1 x cooling tower, SS 316L
1 x manometer (0 – 40 bar)
1 x safety relief valve set for 25 bar
1 x 4-way union, Swagelok 1/4 in. OD, SS 316L
3 x electrode fitting, Swagelok 6 mm OD x 1/8 in. Male NPT, SS 316L
2 x fitting, Swagelok 1/4 in. OD x 1/8 in. Male NPT, SS 316L
2 x ball valve, Swagelok 1/4 in. OD, SS 316L
1 x set of O-rings, FFKM,
1 x temperature probe fitting, IDEX, 1/8 in. x 1/4-28, SS 316L
3 x connecting unit, 1/4 in. OD, 1/8 in. ID, 30 mm long, SS 316L
1 x C-spanner 85 mm (cell opening tool)
1 x PEEK plug, 6 mm dia.
1 x PTFE tape
