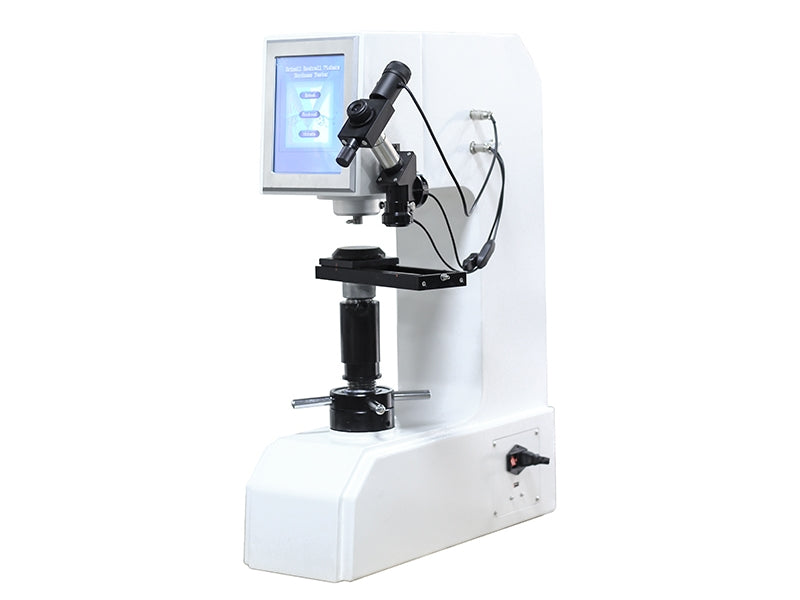

NANO PRO Universal (Brinell-Vickers) Hardness Tester

NANOSSR offers a Universal (Brinell-Vickers) Hardness Tester. The Brinell-Vickers Hardness Tester utilizes the Brinell, Rockwell, and Vickers testing methods, offering multiple testing options. During the testing process, a static or impact load is applied to the surface of the material under test, and the resulting indentation size is measured to determine the material's hardness value.

The Hardness Tester finds wide applications in industries such as materials engineering, mechanical manufacturing, and metal processing. By measuring the hardness of materials, it enables the evaluation of material strength, wear resistance, and deformability, providing important references for material selection, process control, and quality inspection.

Brand: NANO PRO™

Manufacturer: NANOSSR LLC

Main Features:

• Equipped with Brinell, Rockwell, and Vickers test methods.
• Electronically and electrically loaded, featuring a high-precision sensor, with a unique closed-loop control system.
• Eyepiece structure with a digital encoder, measuring D1 and D2 values. The LCD directly displays hardness values and D1, D2 values.
• Easily select the hardness scale and the force value automatically adjusts within the test parameters.
• Test force is automatically corrected, with each force being automatically compensated, significantly improving force accuracy.
• Can be calibrated using standard hardness blocks or length scales.
• The test force can be automatically corrected by a standard dynamometer.
• Allows conversion of hardness values between Brinell, Rockwell, and Vickers scales.
• Touch screen interface for easy operation.
• Automatic hardness conversion according to national standards/ASTM.
• Set password protection for setting parameters, enabling more sample and test information.
• Measurement data is saved in EXCEL format on a U-disk, facilitating easy editing and processing.

Technical Specifications:
