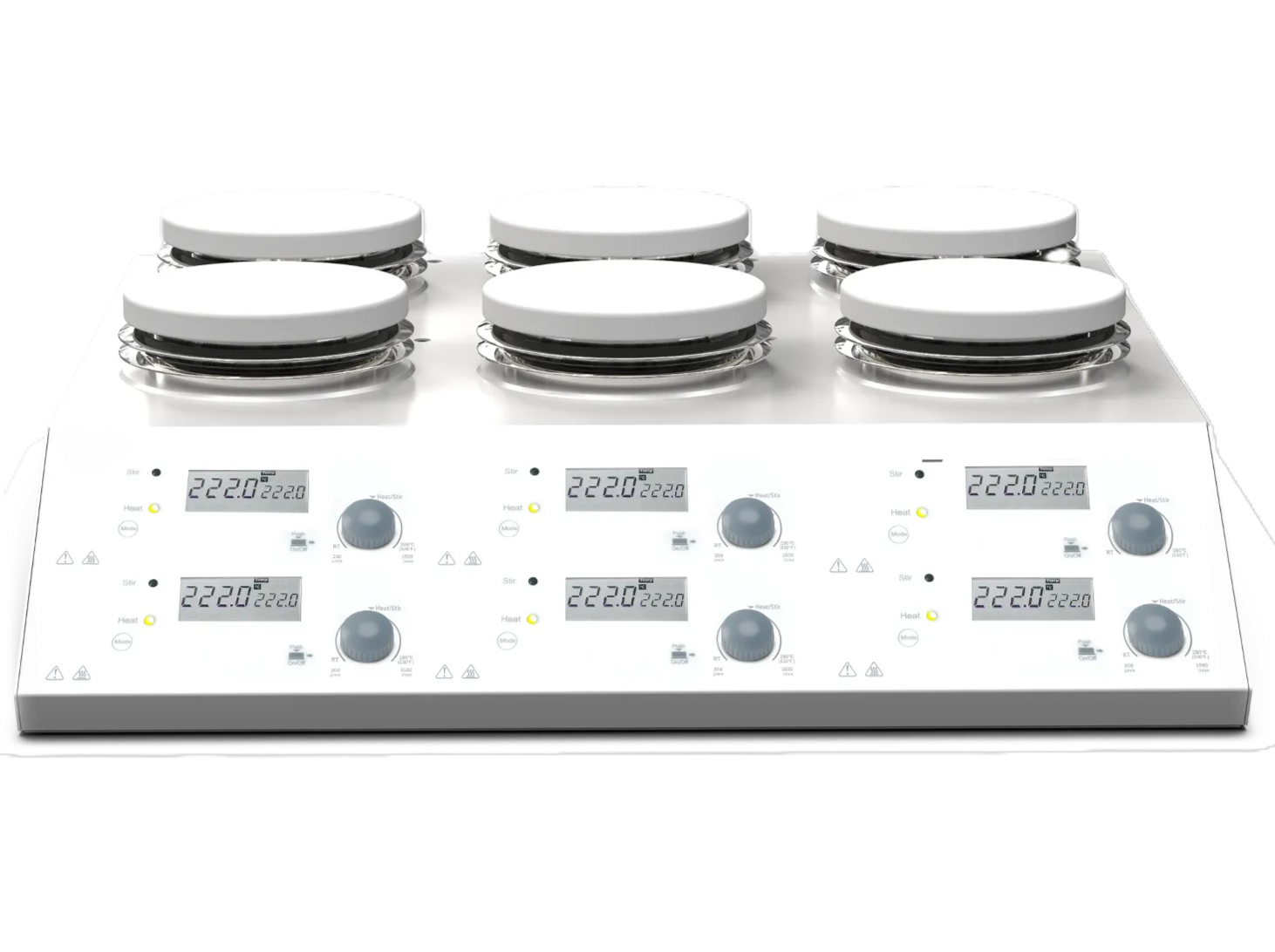

NANO PRO™ 6 Channel LCD Digital Hotplate Magnetic Stirrer, Up To 280℃
- 6 channels with independently control of start/stop, temperature, speed and display for better parallel experiment control.
- Ceramic coating aluminum work plate with fast heat transmission and strong resistance to corrosion.
- Powerful, rapid heating with accurate PID temperature control
- Spark-free DC brushless motor with extended life and no maintenance
- Compatible with various heating block or reaction vessels for a variety of application scenario
- Ultra space-saving with 66 channel integrated in one instrument
- “HOT” warning flashes on the LCD display if the work plate temperature is above 50℃ after the user turn off the power switch.
-
Two independent safety circuits keep monitoring the instrument. When overheating is detected and the sensor malfunctions, it will stop heating and sound alarm; When short circuit is detected, it will cut off the power to ensure the human safety.
Specifications:
|
SKU
|
LS1516
|
|
Work plate Dimension
|
Ø 134mm
|
|
Work plate material
|
Aluminum with ceramic coating
|
|
Max. stirring quantity [H2O]
|
3LX6
|
|
Speed range
|
200-1500rpm
|
|
Speed display
|
LCD
|
|
Temperature display
|
LCD
|
|
Heating temperature range
|
25-280℃
|
|
Temperature control accuracy
|
±1℃ (100℃)
|
|
Temperature display accuracy
|
±0.1℃
|
|
External temperature sensor (optional)
|
Accuracy±0.2℃
|
|
"Hot" warning
|
50℃
|
|
Overheating temperature protection
|
420℃
|
|
Motor type
|
Brushless DC motor
|
|
Stirring positions
|
6
|
|
Max. magnetic bar length
|
40mm
|
|
Data connector
|
-
|
|
Timer function
|
-
|
|
Protection class
|
IP21
|
|
Motor rating input
|
-
|
|
Motor rating output
|
-
|
|
Power
|
605WX6
|
|
Heating output
|
600WX6
|
|
Voltage Frequency
|
100-120V, 50/60Hz (Standard)
200-240V, 50/60Hz
|
|
Dimension [WxDxH]
|
564X523X127mm
|
|
Weight
|
12.7kg
|
|
Permissible ambient temperature
|
5-40℃
|
|
Permissible ambient humidity
|
80% RH
|
