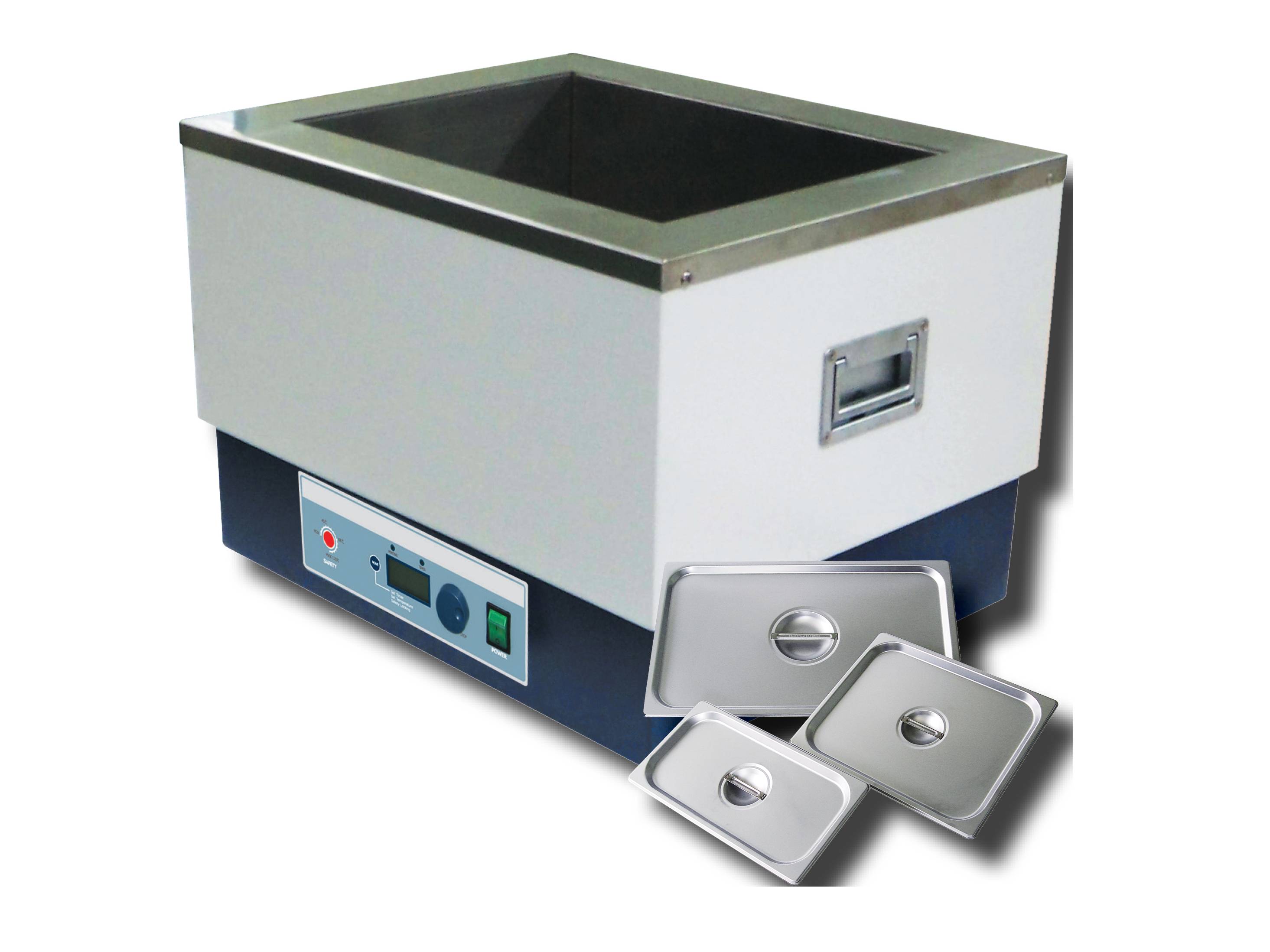

Witeg Baths WHB Oil Bath 6/11/22 Liter 250°C ±0,1°C
Buy Witeg products from NANOSSR at the best value.
Description
Ideal for
- Oil bath for general purpose with high temperature
Features
Devices with 230 V power supply can also be supplied with 120 V on request.
Features
- User‘s self-compensation function to control difference between real temperature And indicated temperature
- Stainless steel bath & lid for superior durability & high thermal efficiency / consistency
- Digital timer function (99hr 59min): delay time and operation time can be controlled
- Storage function for the set values of temperature and timer
- Backlight LCD display
- CE-certified and unique serial number for tracing
Safety mechanism
- Locking mode
- Over- temperature and over-current protection
- Sensor error protection
Controller
- Digital fuzzy controller with Jog-Shuttle-switch (turn + push)
Technical data
| Width (inner) | 400 mm |
| Height (inner) | 180 mm |
| Length (outer) | 490 mm |
| Drain valve | mounted |
| Capacity | 22 l |
| Power consumption | 2500 W |
| Temperature range | Room temperature +5°C - 250°C |
| Temperature accuracy | ±0.1°C |
| Controller | Temperature sensor PT100 |
| Length (inner) | 300 mm |
| Width (Outer) | 525 mm |
| Height (outer) | 370 mm |
| Weight with packaging | 39 kg |
| Effective space | 400 x 300 x 140mm |
| Temperature control resolution | Display 0.1°C, control 0.1°C |
| Temperature fluctuation | ±3.0°C |
| Packing size | 600 x 490 x 500 mm |
Comparison
| SKU | Model | Width (inner) | Length (inner) | Height (inner) | Width (Outer) | Length (outer) | Height (outer) | Drain valve | Weight with packaging | Capacity | Effective space | Power consumption | Temperature control resolution | Temperature range | Temperature fluctuation | Temperature accuracy | Packing size | Controller |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DH.WHB00106 | WHB-6 230 V | 270 mm | 180 mm | 150 mm | 425 mm | 305 mm | 340 mm | mounted | 23 kg | 6 l | 270 x 170 x 110 mm | 1500 W | Display 0.1°C, control 0.1°C | Room temperature +5°C - 250°C | ±3.0°C | ±0.1°C | 470 x 400 x 500 mm | Temperature sensor PT100 |
| DH.WHB00111 | WHB-11 230 V | 300 mm | 250 mm | 150 mm | 425 mm | 490 mm | 340 mm | mounted | 25 kg | 11 l | 300 x 250 x 110 mm | 2000 W | Display 0.1°C, control 0.1°C | Room temperature +5°C - 250°C | ±3.0°C | ±0.1°C | 600 x 490 x 500 mm | Temperature sensor PT100 |
| DH.WHB00122 | WHB-22 230 V | 400 mm | 300 mm | 180 mm | 525 mm | 490 mm | 370 mm | mounted | 39 kg | 22 l | 400 x 300 x 140mm | 2500 W | Display 0.1°C, control 0.1°C | Room temperature +5°C - 250°C | ±3.0°C | ±0.1°C | 600 x 490 x 500 mm | Temperature sensor PT100 |
