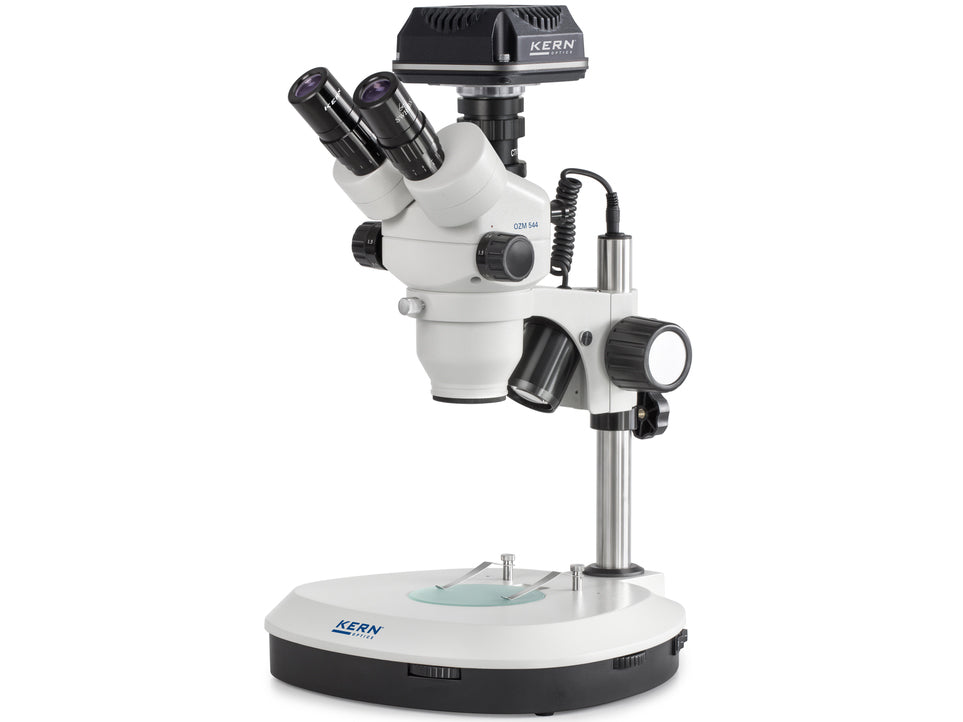

Kern Digital Microscope Set OZM 544C825
NANOSSR offers a Digital Microscope from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.
A digital microscope is a variation of a traditional optical microscope in which a digital/microscope camera is connected, and image output is displayed on a screen and/or monitor. Most models include software and a computer for use. The magnification produced by a digital camera is determined by the size of the monitor an image is displayed on, giving it greater magnification capabilities than the average optical microscope. The power of magnification in a traditional microscope is determined by multiplying eyepiece magnification by objective lens magnification.
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Product Features
- The stereo microscopes of the OZM-5-series are available to you as a comprehensive digital solution with an mounted C-mount camera for your live investigations. Naturally, the appropriate C-mount adapter is included with the delivery
- The mounted C-mount camera is available in different versions and can be used anywhere
- A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery.
OZM 544
- The KERN OZM-5 series is a range of excellent stereo zoom microscopes with above-average optical features.
- The ergonomic shape allows a simple, effortless working over a period of several hours.
- The extraordinarily strong and continuously dimmable 3W LED incident and transmitted illumination ensures a flexible and particularly good level of illumination for your sample.
- With its large working distance, an extra large field of view and its brilliant resolution, the KERN provides sharp, high-contrast, colour-true images.
- The zoom objective offers you continuous magnification from 0,7 x-4,5 x
- The pillar stand is particularly flexible due to its variable and sturdy adjustment mechanism and therefore enables ergonomic working procedures.
ODC 825
- Through the proven CMOS technology, in connection with the USB 2.0 the images are shown quickly and clearly
- These cameras are also ideal for more demanding applications, such as, for example, darkfield, phase contrast and for fluorescence applications.
- Your daily work is made significantly easier with the very best synchronisation, a high frame rate as well as stable image performance together with our Microscope VIS software which we deliver with the product.
- The power supply is through the USB cable, which means that no additional power supply is required
- As well as the camera, the delivery includes our multi-lingual KERN Microscope VIS Basic KERN OXM 901, a USB cable (Length: 2000 mm) various eyepiece adapters and an object micrometer to calibrate the software.
Product Parameters
| Optical system | Greenough |
| Tube type | Trinocular |
| Ocular magnifications | 10 x |
| Ocular visual field | 20 mm |
| Magnification ratio | 6,4:1 |
| Zoom [Min] | 0,7 x |
| Zoom [Max] | 4,5 x |
| Illuminance | Transmitted light |
| Illumination type transmitted light | LED |
| Illumination intensity transmitted light | 3 W |
| Illumination type incident light | LED |
| Illumination intensity incident light | 3 W |
| Focusing mechanism | coarse drive |
| Camera sensor type | CMOS |
| Camera colour depth | Colour |
| Camera sensor size | 1/2,5" |
| Camera resolution | 5,1 MP |
| Interfaces | USB 2.0 |
| Camera framerate | 6,8 - 55 fps |
| Working distance | 110 mm |
| Sample height [Max] | 130 mm |
| Stand type | pillar |
| Dimension (W×D×H) | 330×285×510 mm |
| Product family | OZM-S |
