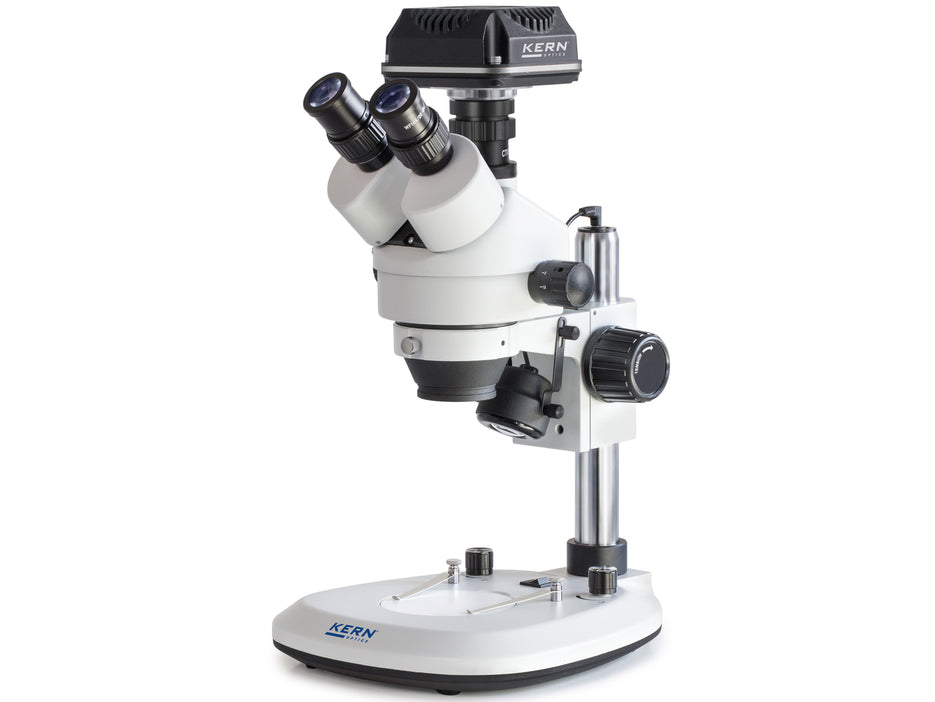

Kern Digital Microscope Set OZL 464C825
NANOSSR offers a Digital Microscope from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.
A digital microscope is a variation of a traditional optical microscope in which a digital/microscope camera is connected, and image output is displayed on a screen and/or monitor. Most models include software and a computer for use. The magnification produced by a digital camera is determined by the size of the monitor an image is displayed on, giving it greater magnification capabilities than the average optical microscope. The power of magnification in a traditional microscope is determined by multiplying eyepiece magnification by objective lens magnification.
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Product Features
- The flexible, cost-effective OZL-46 series is also available to you as a comprehensive digital solution with an mounted C-mount camera for your live investigations. Naturally, the appropriate C-mount adapter is included with the delivery
- The mounted C-mount camera is available in different versions and can be used anywhere
- A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery.
OZL 464
- The products in the KERN OZL-46 series are stereo zoom microscopes, which will impress you with their easy handling, flexibility as well as their stability and economical price.
- The LED incident and transmitted illumination included as standard guarantees the very best illumination of your sample
- As well as excellent optical characteristics and their large working surface, this model offer the highest level of comfort in this class – ideal for training companies, workshops as well as assembly and repair workstations, e.g. in the electronics industry.
- The zoom objective offers you continuous magnification from 0,7 x-4,5 x
- The pillar stand offers you the highest level of flexibility and the freedom to remove the microscope head and to integrate it into other modular systems, for example into a universal stand
ODC 825
- Through the proven CMOS technology, in connection with the USB 2.0 the images are shown quickly and clearly
- These cameras are also ideal for more demanding applications, such as, for example, darkfield, phase contrast and for fluorescence applications.
- Your daily work is made significantly easier with the very best synchronisation, a high frame rate as well as stable image performance together with our Microscope VIS software which we deliver with the product.
- The power supply is through the USB cable, which means that no additional power supply is required
- As well as the camera, the delivery includes our multi-lingual KERN Microscope VIS Basic KERN OXM 901, a USB cable (Length: 2000 mm) various eyepiece adapters and an object micrometer to calibrate the software.
Product Parameters
| Optical system | Greenough |
| Tube type | Trinocular |
| Ocular magnifications | 10 x |
| Ocular visual field | 20 mm |
| Magnification ratio | 6,4:1 |
| Zoom [Min] | 0,7 x |
| Zoom [Max] | 4,5 x |
| Illuminance | Transmitted light |
| Illumination type transmitted light | LED |
| Illumination intensity transmitted light | 3 W |
| Illumination type incident light | LED |
| Illumination intensity incident light | 3 W |
| Focusing mechanism | coarse drive |
| Camera sensor type | CMOS |
| Camera colour depth | Colour |
| Camera sensor size | 1/2,5" |
| Camera resolution | 5,1 MP |
| Interfaces | USB 2.0 |
| Camera framerate | 6,8 - 55 fps |
| Working distance | 105 mm |
| Sample height [Max] | 140 mm |
| Stand type | pillar |
| Dimension (W×D×H) | 300×240×490 mm |
| Product family | OZL-S |
About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!
NANOSSR is an authorized distributor for KERN & SOHN GmbH.
