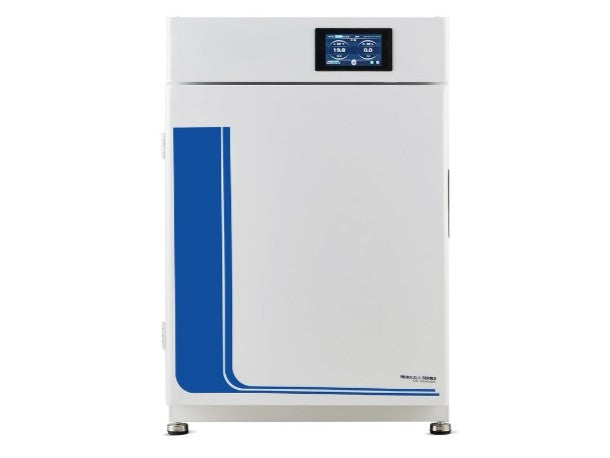

NANO PRO™ 140°C High Heat Sterilization CO2 Incubator (185L)
NANO PRO™ 140°C High Heat Sterilization CO2 Incubator (185L) has a 185L capacity and utilizes high heat as a method of sterilization. Its primary use is for static cell culture and maintaining a constant temperature and high humidity for the growth of tissue culture cells under a CO2 atmosphere.
NANOSSR offers a variety of High Heat Sterilization CO2 Incubators with the capacity range from 85L to 248L.
Brand: NANO PRO™
Manufacturer: NANOSSR LLC
Main Features:
- 5in LCD Touch Screen
- Consists of a 6-sided direct heat chamber for uniform temperature distribution.
- Polished stainless steel one-piece interior chamber with rounded corners for easy cleaning
- Flexible combination of detachable pallets, independent humidity pan can be removed or put in according to demand
- Easy-to-clean 304 stainless steel water pan for humidification holds up to 4L of water
- 140°C high heat sterilization system effectively eliminates bacteria, mold, yeast and mycoplasma from the interior cavity surface
- Chamber's built-in ISO Class 5 HEPA air filtration system provides uninterrupted filtration of air throughout the chamber
- Infrared (IR) CO2 sensor for stable monitoring when humidity and temperature are less predictable, effectively avoiding measurement bias problems associated with frequent door opening and closing
- Intuitive controls for easy operation, instant run curves, historical run curves
- Audible and visual alarms with on-screen menu prompts
- Historical data can be viewed, monitored and exported via USB port, historical data cannot be changed and can be truly and effectively traced back to the original data
Technical Specifications：
185L Capacity
| Model | MSE180 | MSE180-2 (Set) | MSE180-D2 (2nd Unit) |
|
SKU # |
LS0232 | LS0233 | LS0234 |
| Capacity | 185L | 185L (each) | 185L |
| Sterilization method | 140°C High heat sterilization | ||
| Internal Dimensions, LxWxH | 535x526x675mm |
||
| External Dimensions, LxWxH | 660x652x1000mm (Base Included) |
660x652x1965mm (Base Included) | 660x652x965mm (no base) |
| Shipping Dimensions, LxWxH | 700×700×1050mm | 700×700×1050mm (each) | 700×700×1050mm |
| Control Interface | 5in LCD Touch Screen | ||
| Temperature Control Mode |
PID Control | ||
| Temperature control range | Ambient 4°C~60°C | ||
| Temperature display resolution |
0.1°C |
||
| Temperature stability | ±0.1°C | ||
| Temperature field uniformity | ±0.2°C at 37°C | ||
| Max. Power | 900W | ||
| Timing function | 0-999.9 Hrs | ||
| CO2 measurement principle | Infrared (IR) detection | ||
| CO2 control range | 0-20% | ||
| CO2 display resolution | 0.10% | ||
| CO2 supply | 0.05~0.1MPa is recommended | ||
| Relative Humidity | Ambient humidity ~95% at 37°C | ||
| HEPA filtration | ISO 5 level, 5 minutes | ||
| Temperature recovery time | ≤10 min (open door 30sec room temperature 25°C set value 37°C) |
||
| CO2 concentration recovery time | ≤5 min (open the door 30sec set value 5%) |
||
| Historical data storage | 250,000 messages | ||
| Data export interface | USB interface | ||
| Scalability | Up to 2 units can be stacked | ||
| Working environment temperature | 10~ 30°C | ||
| Power supply | 115V / 50~60Hz | ||
| Weight | 108kg (each) | ||
Items Included
| Item | Quantity |
|
CO2 Incubator |
1 |
| HEPA Filter | 1 |
| Access Port Filter | 1 |
| Humidity Pan | 1 |
| Shelf | 3 |
| Power Cord | 1 |
| Product Manual and Supplemental Data |
1 |
