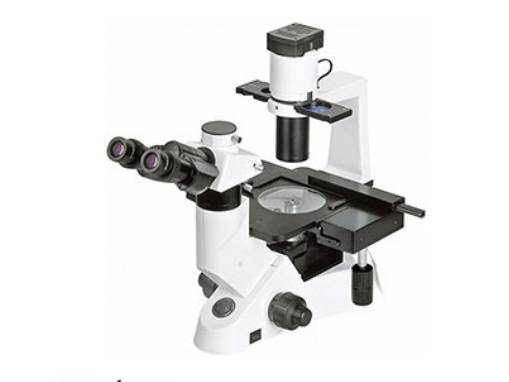

NANO PRO™ Trinocular Inverted Biological Microscope
The NANO PRO™ NANO PRO Trinocular Inverted Biological Microscope is a high-performance inverted microscope designed for various applications in cell biology, microbiology, and immunology. It features a trinocular viewing head, a range of high-quality objectives, a precise focusing system, and a powerful illumination system. The microscope also includes a mechanical stage for easy specimen manipulation and a camera port for image capture and analysis.
- Ergonomic Design: The trinocular viewing head is inclined at 30° and rotatable 360°, offering comfortable viewing for extended periods. The interpupillary distance is adjustable for individual preferences.
- High-Quality Optics: The microscope is equipped with a set of infinite plan achromatic and phase contrast objectives, providing sharp, clear, and distortion-free images across a wide field of view.
- Versatile Illumination: The microscope offers both halogen and LED illumination options, providing bright and even illumination for various applications. The LED light source is energy-efficient and has a long lifespan.
- Precise Focusing: The coaxial coarse and fine focusing system allows for accurate and precise focusing adjustments, even at high magnifications.
- Flexible Stage: The mechanical stage accommodates a variety of culture dishes and slides, making it suitable for different experimental setups.
Brand: NANO PRO™
Manufacturer: NANOSSR LLC
NANOSSR offers a variety of Inverted Biological Microscopes. Please contact us for more information.
Specifications:
| SKU# | BB0431 | ||
| Optical System | Infinite optical system | ✓ | |
| View Head | Trinocular head inclined at 30°, interpupillary distance 48-75mm | ✓ | |
| Eyepiece | High-point, extra wide field eyepiece EW10x/ 22 | ✓ | |
| Objective | LWD infinite plan objective | 4x/0.1, WD 17.3mm; | ✓ |
| 10x/ 0.25, WD 10mm; | • | ||
| 20x/ 0.4, WD 5.1mm; | • | ||
| 40 / 0.6, WO 2.1mm | ✓ | ||
| Infinite plan phase objective | PH10x/ 0.25, WD 10mm; | ✓ | |
| PH20x/ 0.4, WC/ 5.1mm; | ✓ | ||
| PH40x/ 0.65, WD 2.1mm | • | ||
| Nosepiece | Quintuple nosepiece | ✓ | |
| Condenser | ELWD condenser NA 0.3, IWD 72mm (without condenser 150mm) | ✓ | |
| Centering | Centering telescope (Φ30MM) | • | |
| Phase Annulus | 10x-20x, phase annulus plate (fixed) | ✓ | |
| 10x-20x, 40x phase annulus plate (adjustable) | • | ||
| Stage | Plain stage 160x250 mm | ✓ | |
| Glass insert | ✓ | ||
| Attachable mechanical stage, X-Y coaxial control, moving rang120 78mm | • | ||
| Auxiliary stages 70 x 180 mm | ✓ | ||
| Terasaki holder | • | ||
| Φ35mm petri dish holder | • | ||
| Φ54mm slide glass holder | • | ||
| Φ90mm petri dish holder | • | ||
| Focusing | Coaxial Coarse and Fine Adjustment, Fine Division 0.002 mm, Coarse Stroke 37.7 mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range up 8mm, down 3 mm | ✓ | |
| Illumination | Halogen lamp 6V/ 30W | ✓ | |
| LED | • | ||
| Filter | Blue, green and ground glass, diameter 45 mm | ✓ | |
| Power Supply | AC 110-220V | ✓ | |
| Accessories | Inverted flurescent attahement FL-100, photo attachment, video adapter with C mount | • | |
Note: ✓ Standard Outfit, • Optional, Trinocular microscope can be installed camera and screen.
