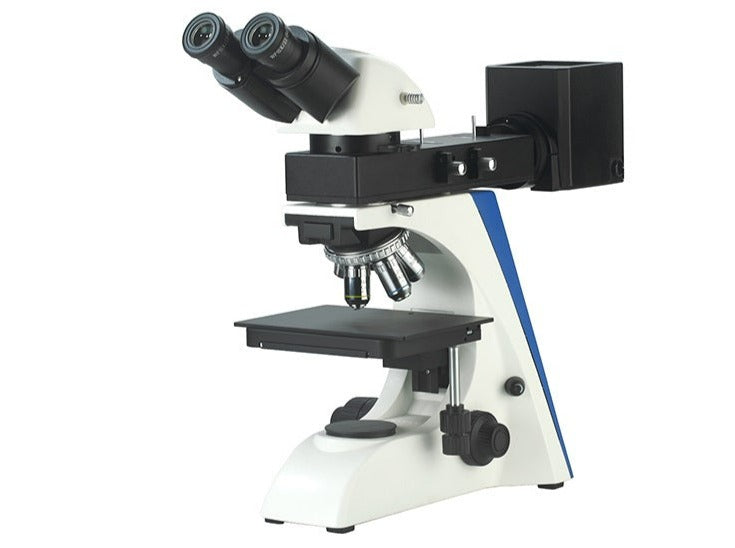

NANO PRO™ Standard Binocular Metallurgical Microscope, Reflected Illumination
- Infinite optical system provides excellent resolution and definition.
- Infinite long working distance objective, provide wide space for specimens.
- Powerful LED or Halogen transmitted and reflected system with Kohler illumination.
- Polarizing attachment and other accessories are available.
- Stage with fast lowering unit can increase 50mm for working distance, more convenient for observing big size sample.
- Oversized three-layer mechanical stage provides more choice for samples.
- Reflection illumination with Field diaphragm and Aperture diaphragm.
Applications:
The metallurgical microscope is widely used in institutes and laboratories to observe and identify the structure of various metal and alloy, it also can be widely used in electronics, chemical and instrumentation industry, observe the opaque material and transparent material, such as metal, ceramics, integrated circuits, electronic chips, printed circuit boards, LCD panels, film, powder, toner, wire, fibers, plated coatings, other non-metallic materials and so on.
Specifications:
| Item | Specification | OM0010 | |
| Optical System | Infinite Optical System | ● | |
| Viewing Head | Seidentopf Binocular Head, Inclined 30°, Rotatable 360°, Interpupillary Distance: 48-76mm, Tube diameter: 30mm | ● | |
| Seidentopf Trinocular Head, Inclined 30°, Rotatable 360°, Interpupillary Distance: 48-76mm, Tube diameter: 30mm. Light distribution (both): 100: 0 (100% for eyepiece), 80:20 (80% for trinocular head and 20% for eyepiece) | ○ | ||
| Eyepieces | WF10×/22mm (adjustable) | ● | |
| WF10×/22mm (adjustable , reticule 0.1mm) | ● | ||
| Long Working Distance Infinite Plan Objective | LMPlan FL 5×/0.15 | W.D=21.0mm | ● |
| LMPlan FL 10×/0.30 | W.D=20.0mm | ● | |
| LMPlan FL 20×/0.40 | W.D=15.0mm | ● | |
| LMPlan FL 50×/0.55 (S) | W.D=10.0mm | ● | |
| LMPlan FL 50×/0.75 (S) | W.D=4.25mm | ○ | |
| LPL 80×/0.80 (S) | W.D=0.85mm | ○ | |
| LMPlan FL 100×/0.85 (S, Dry) | W.D=3.00mm | ○ | |
| Nosepiece | Backward Quintuple Nosepiece | ● | |
| Mechanical Stage | Stage size: 200mm × 150mm, Travel range: 77mm × 52mm. Stage fast lowering unit: Up-Down moving range can be increased to 50mm | ● | |
| Focus | Coaxial Coarse and Fine Focusing, Fine Division 0.002mm, Fine Stroke 0.2mm per Rotation, Moving Range 25mm. Tightness adjustment, upper distance limiter | ● | |
| Micrometer | Stage Micrometer 0.01mm | ○ | |
| Polarizing Unit | Polarizing and Analyzer attachment | ● | |
| Reflected Illumination | 5W LED lamp (Input voltage: 100V～240V) | ● | |
| 12V/50W Halogen lamp (Input voltage: 100V～240V) | ○ | ||
| Filter | Blue | ● | |
| Green | ○ | ||
| Amber | ○ | ||
| Grey | ○ | ||
| C-mount Adapter | 1× C-mount (Focus Adjustable) | ○ | |
| 0.5× C-mount (Focus Adjustable) | ○ | ||
| Packing | Packing Size: 520×470×430mm, Gross Weight: 16 kgs, Net Weight: 12kgs | ● | |
Note: ●Standard parts, ○Optional parts
