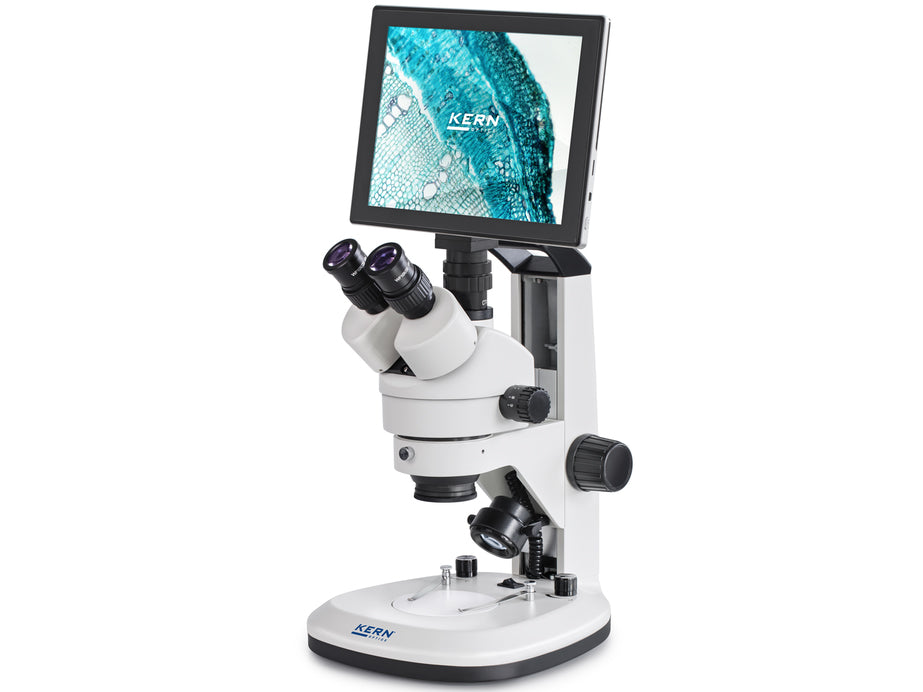

Kern Digital Microscope Set OZL 468T241
NANOSSR offers a Digital Microscope from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.
A digital microscope is a variation of a traditional optical microscope in which a digital/microscope camera is connected, and image output is displayed on a screen and/or monitor. Most models include software and a computer for use. The magnification produced by a digital camera is determined by the size of the monitor an image is displayed on, giving it greater magnification capabilities than the average optical microscope. The power of magnification in a traditional microscope is determined by multiplying eyepiece magnification by objective lens magnification.
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Product Features
- The flexible, cost-effective OZL-46 series is also available to you as a comprehensive digital solution with an mounted tablet camera for your live investigations. Naturally, the appropriate C-mount adapter is included with the delivery
- The mounted KERN ODC 241 tablet-camera has been specially developed for simple, convenient and direct investigation of the sample on the screen. Ideally suited for school pupils and students in education or for demonstration purposes in the laboratory
- A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery.
OZL 468
- The products in the KERN OZL-46 series are stereo zoom microscopes, which will impress you with their easy handling, flexibility as well as their stability and economical price.
- The LED incident and transmitted illumination included as standard guarantees the very best illumination of your sample
- As well as excellent optical characteristics and their large working surface, this model offer the highest level of comfort in this class – ideal for training companies, workshops as well as assembly and repair workstations, e.g. in the electronics industry.
- The zoom objective offers you continuous magnification from 0,7 x-4,5 x
- The pillar stand offers you the highest level of flexibility and the freedom to remove the microscope head and to integrate it into other modular systems, for example into a universal stand
- With its integrated handle as well as its stable mechanical stand, the KERN {OZL 468 has been specially developed for schools and workshops.
ODC 241
- As well as a live transfer of theimage to the Android tablet, the integrated 5-MP cameraalso means that images and videos can becreated for the documentation.Simple measuring functions, such as, for example, functionsfor measuring distance, surfaces andangles as well as a manual counting function arealso available
- Automatic white balance and automatic contrast adjustment can be performed quickly and easily, which enables efficient working procedures
- A range of additional functions are provided through the integrated interfaces, such as, for example
- Data storage on a USB stick or SD card
- Connection to a USB mouse
- Transfer of the live image to an external screen using HDMI
- Transfer of stored data to external receivers using WLAN
Product Parameters
| Optical system | Greenough |
| Tube type | Trinocular |
| Ocular magnifications | 10 x |
| Ocular visual field | 20 mm |
| Magnification ratio | 6,4:1 |
| Zoom [Min] | 0,7 x |
| Zoom [Max] | 4,5 x |
| Illuminance | Reflected light, Transmitted light |
| Illumination type transmitted light | LED |
| Illumination intensity transmitted light | 3 W |
| Illumination type incident light | LED |
| Illumination intensity incident light | 3 W |
| Focusing mechanism | coarse drive |
| Display type | LCD touch |
| Display screen size | 9,7" |
| Display resolution | 2048×1536 |
| mcuDetails | Quad Core Cortex-A17; 1,8 GHz |
| Camera sensor type | Sony CMOS |
| Camera colour depth | Colour |
| Camera sensor size | 1/2,8" |
| Camera resolution | 5 MP |
| Interfaces | WiFi standard, USB 2.0, HDMI, MicroSD card slot |
| C-Mount magnification | 0,5 x |
| Working distance | 105 mm |
| Sample height [Max] | 140 mm |
| Stand type | mechanical |
| Dimension (W×D×H) | 300×240×640 mm |
| Product family | OZL-S |
