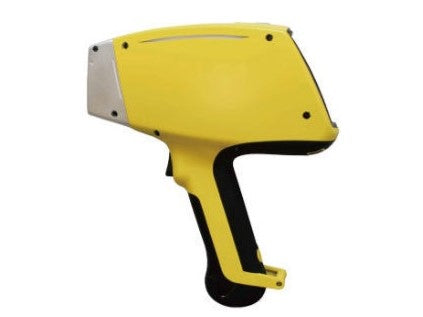

NANO PRO™ Handheld XRF Gold Analyzer, SDD Detector, Model 4
Features
- Small, light and easy to carry.
- High-speed processing chip, advanced algorithm and high-responsive software, resulting in even faster analysis.
- High-performance X-ray Tube, Ultra-high Resolution Detector combined with Digital Multi-channel Processing Technology, yielding super-high detection resolution.
- Industrial resistive touch screen, superior to capacitor screen in back-light and clearer against sunlight in the field. At the same time, people don't need to take off gloves when they are operating machine in some particular environment.
- Intelligent battery management exerts a real-time monitoring of the residual capacity of battery and backup battery through MSBUS bus.
- Automatic switch to standby mode when not used and recovery after the machine is picked up, which saves power and extends working time; moreover, it has a gravity sensing system which shuts down instrument automatically when it
accidentally falls down, another safety consideration; it will also give out alarm when ambient temperature or humidity exceeds the scope of application. - On Model 1, users can customize the reports by adding their company logos, addresses, test results, spectrum and others (such as product description, origin of products and batch number).
- Model 1 is built with double beam technology which can automatically sense whether there is a sample at the measurement window. This is also a safety and protection feature. The brightness of the display is automatically regulated according to environment brightness.
- Model 1 can be configured and maintained in a remote way via Internet.
- Model 1's new algorithm optimizes the spectral resolution, so lower detection limits can be achieved, which are comparable with even large-scale lab instruments.
- Model 1 Ultra-short optical path design can significantly improve light element excitation effects, without the fall/fill condition.
- Model 1 has a built-in environmental sensing system covering conditions such as temperature, dust humidity and others.
Application Field
- Nondestructive, rapid and accurate analysis of Precious Metals
- Precious Metals Grade identification
- Precious Metals elements and contents analyze
- Pawn broking, jewelry industry, banking industry, jewelry testing center, mining industry, precious metal recycling, precious metal materials researching laboratory, etc.
- Precious metal. Such as gold, Karat gold, platinum, silver.
- Mixed metal or other alloy metal
- Jewelry materials. Such as ring, necklace, bracelet, watchband, belt fastener, gold ingot, gold bar, statue, coin, etc.
Elements to be Analyzed and Test Modes
| Test modes of Model 1 and elements covered | |
| Analysis mode | Scope of elements in standard test mode can be extended if there is such a need. |
| Model 1 | Can analyze Fe, Co, Ni, Cu, Zn, Se, Ru, Rh, Pd, Ag, Cd, In, Ir, Pt, Au, Pb |
Usage
- karat value, percentage content for gold
- PT value, percentage content for platinum
- S value, percentage content for silver
- Percentage content for other alloy.
- Wide karat value for gold display from 9K to 24K and % percentage content.
- Wide PT value for platinum display from PT600 to PT1000 and % percentage content.
- Wide S value for silver display from S600 to S1000 and % percentage content.
Specifications
Specification
| Excitation source | Up to 50KV/200μA, tube pressure and tube flow can be adjusted freely, Target Ag (standard), Au(optional), W(optional), Rh(optional). |
| Detector | SDD detector |
| Range of detection | All elements between Mg and U. |
| Display system | Industrial resistive touch screen with screen size of 4.3". Professional operating system and software. Multiple languages including English and Chinese. And it automatically adjusts display brightness according to the environment brightness |
| Data processing | 32GB memory. USB, Bluetooth, wifi can connect the device to the Internet, repair and setup can be done remotely. Data can be exported as EXCEL or PDF. Users can customize the reports by adding their company logos, addresses, test results, spectrum and others (such as product description, origin and batch number). |
| Heat dissipation | Equipped with a dedicated T-shaped radiator to dissipate the heat; no need to wait for cooling of detector. |
| Safety | Built-in double beam technology can automatically sense whether there is a sample at the measurement window. This is also a safety and protection feature. Waterproof, dust-proof and shockproof suitcase. |
| Power supply system | Intelligent battery with MSBUS bus, real-time monitoring battery, spare battery can directly check the remaining capacity of the battery, the battery complies with air dangerous goods transport regulations. A single battery can work for about 8 hours. |
| Weight | 1.5 kg |
| Dimensions | 254 × 79 × 280 mm (L × W × H) |
