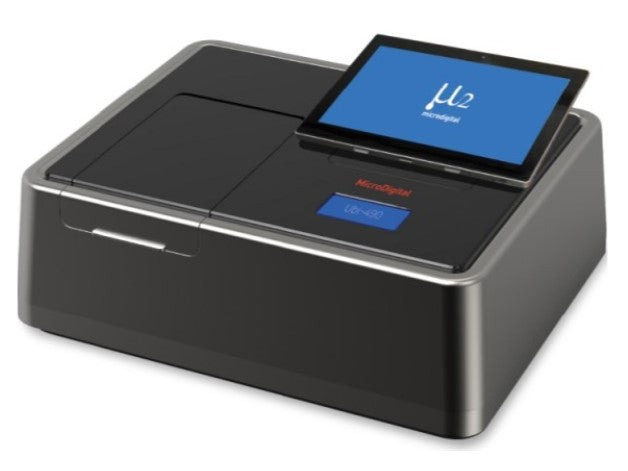

Ubi-490 UV/Vis Single Beam Spectrophotometer, 190-1100nm
NANOSSR offer an Ubi-490 UV/Vis Spectrophotometer from MicroDigital, which is a Touchscreen Single Beam UV/Vis Spectrophotometer. Included with the reader is an Automatic 8-cell Holder.
Model: Ubi-490
Manufacturer: MicroDigital Co.Ltd.
Key Features:
- Enhanced Precision: The utilization of a lead screw structure significantly enhances the accuracy and resolution of wavelength measurements, ensuring improved data precision.
- Safety Assurance: A robust 8mm aluminum base serves as the optical mount, providing stability and ensuring safety during operation.
- Long-lasting Lamp: Incorporating reference beam technology, the Ubi-490 minimizes the need for frequent and costly lamp replacements. The Deuterium lamp and halogen lamp can be switched on/off as required.
- Quartz Overcoating: To safeguard the high-precision optical components against contaminants, a quartz coating treatment is applied, significantly extending the product's lifespan.
- Intuitive User Interface: The user interface is designed to be intuitive, offering easy and convenient options for configuring each measurement mode, facilitating efficient experimentation.
- Versatile Applications: With a wide range of applications available, the Ubi-490 caters to diverse user needs, including water quality analysis and pesticide residue analysis.
- Data Expansion: Data can be conveniently exported to a PC or printer via USB or parallel port connections, enabling seamless data transfer and further analysis.
- Voltage Flexibility: Even in situations with unstable power supply, the Ubi-490 maintains stable analysis results without the need for an additional transformer or voltage stabilizer, thanks to its free voltage capability.
- Enhanced Energy Efficiency: Compared to similar products on the market, the Ubi-490 optimizes power consumption by minimizing standby power usage after lamp and motor operations, thus increasing energy efficiency.
- Compact Design: With its compact size, the Ubi-490 maximizes laboratory space efficiency, providing a smaller footprint while delivering powerful performance.
Optional Accessories
- Automatic 8-Cell Holder (Qty of 1 included with purchase of Ubi-490): Simultaneously Measure up to 8 Samples.
- Micro Volume Cell Holder: Designed for Measuring Samples with Volumes of 500µl or Less.
- Film Cell Holder: Ideal for Measuring Light-Transmitting Solid-State Samples like Optical Films or Slide Glasses.
Software Features
- Photometry: Measure Absorbance (Abs), Transmittance (%T), and Concentration using a Standard Curve at a Specific Wavelength
- Kinetics: Monitor Changes in Absorbance (Abs) or Transmittance (%T) Over Time
- Wavelength Scan: Measure Absorbance (Abs) or Transmittance (%T) Changes within a Specified Wavelength Range and Interval
- Multi Wavelength: Simultaneously Measure Multiple Wavelengths
- Water Quality Analysis: Determine the Concentration of Specific Water Quality Parameters using the Integrated Standard Curve
- Pesticide Residue Analysis: Analyze Inhibition Rate of Samples using One-Point, Two-Point, or Kinetic Methods
- Test Tube Holder: Facilitate Analysis Using Test Tubes, Particularly for Water Quality Analysis
Specifications:
| Wavelength Range | 190 - 1100nm |
| Bandwidth | 2nm |
| Wavelength Accuracy | ± 0.5 nm |
| Wavelength Reproducibility | 0.3nm |
| Photometric Accuracy | ± 0.3%T |
| Photometric Repeatability | 0.2%T |
| Photometric Display Range | 0-200%T, -0.3-3.0A |
| Stability | 0.002A/h@500nm |
| Stray Light | ≤ 0.05%T@200nm, 360nm |
| Data Output Port | USB |
| Lamps | Deuterium Lamp &Tungsten Halogen Lamp |
| Detector | Silicon Photodiode |
| Power Requirement | 220V / 50Hz |
| Dimensions (L x W x H) | 450 x 380 x 180mm |
| Weight | 18kg |
NANOSSR is an authorized distributor of MicroDigital Co. Ltd. MicroDigital is one of the leading bio-instrument and diagnostic kit manufacturing companies in South Korea. They provide various types of systems and solutions for different types of biomedical industry.
