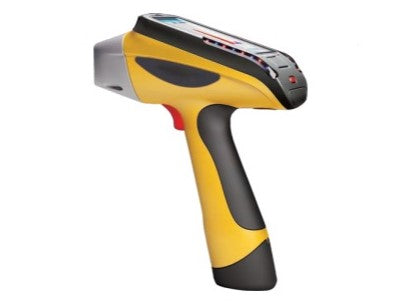

NANO PRO™ Handheld XRF Metal/Alloy/Stainless Steel Analyzer, Model 2
Overview
DW-EX7000 adopts newer digital multi-channel technology, lower detection limits, better stability, and wider applied range. It has comparable performance with bench top. Its small and convertible size makes analysis, refining slag more simply and easier
Features
1. Personalized customization work mode
Selections of various Ore -sample一models and free to add unlimited-number - models, the work model can be customized by customer's demand.
2. The accurate definition of mining boundary
The built-in GPS function helps to receive signals from satellite anytime at anywhere, and can record the measurements of altitude, latitude and longitude during anytime of testing period, which determine the geographic location information of sampling points, and save as test reports automatically. It can draw the ore distribution pictures by obtained coordinate analytical data, screen large area range rapidly and grasp the lode mine accurately, then define the mining boundary, in order to prior to find rich mining area to improve the production efficiency. A built in Bluetooth function, which can recognize the key mining areas on site when the instrument collocates with a Bluetooth printer.
3. Environmental monitoring
To monitor and detect the heavy metals in the soil around the mines, to evaluate mine repair environments, in order to maximize the monitoring the surrounding environment of good mines
4. Discover the mines' full- value
HD camera function, observes the detected vein and point position more intuitive, manages and controls the process of mining exploitation better, detects the grade of ore at any time.
During ore dressing, the quick and accurate analysis of raw ore, concentrate and tailings , provides the value judgment basis for the determination of ore grade, mineral trade, processing and recycling.
Specification
| Analytical Method | Energy dispersive X ray fluorescence analytical Method |
| Elements Measuring Range | Atomic number from 12 to 92 elements from magnesium (Mg) to uranium ( U) can be measured |
| Simultaneous detector elements | Simultaneous analyze 40 elements |
| Microcomputer system | Customized system; CPU: 1G ; System memory: 1G ; extended stored maximum support 32G ; Standard 4G for mass storage data |
| The content range | ppm ~ 99.99% |
| The detection time | 1 ~ 60 seconds (one second report results) |
| A built-in system | GPS, WIFI, Bluetooth |
| Power Supply | Rechargeable lithium battery, standard is 9000mAh, sustainable work up to 12 hours, optional is 27000mAh superbattery with wide voltage 110 ~ 220 universal adapter for recharging power supply |
| Detection Objective | Solid, liquid, powder |
| Detector | Fast-SDD detector |
| Detector resolution | Minimum can reach 128eV |
| The excitation source | 50KV /200uA- silver target end window integrated miniature X-ray tube and high voltage power supply |
| Collimator and filter | Collimator diameters are 4.0mm and 2.0mm, kinds of filters with automatic switching functions |
| Video system | 500W pixel high resolution camera |
| Display screen | Brand new inch semi-reflecting and semi-transmitting LCD touch, its resolution is 1080*720. |
| Detection limit | The minimum detection limits at ~ 500 ppm |
| Safety | Multiple safety protection, no tests, no radiation, radiation levels at work are far below the international safety standards, and has no sample telemetry, automatic -turn -off X-Ray tube function Standard radiation shields, thickened instrument alloy testing wally test instrument |
| Specialty | Ore Special edition of ore’ analytical software, and intellectualized one key testing. |
| Convenience of application | No need select curves, intellectualized one- key-selecting will select the best matching curve |
| Data transmission | Digital multi-channel technology, data transmission, quick analysis, the high count rate waterproof mini USB, and can be connected with a desktop computer |
| Operating ambient humidity | |
| Operating environmental temperature | -20 °C ~ 50 °C |
| Instrument dimension | 244mm ( Length) x 90mm (Width) x330mm ( Height) |
| Instrument weight | 1.7 kg |
