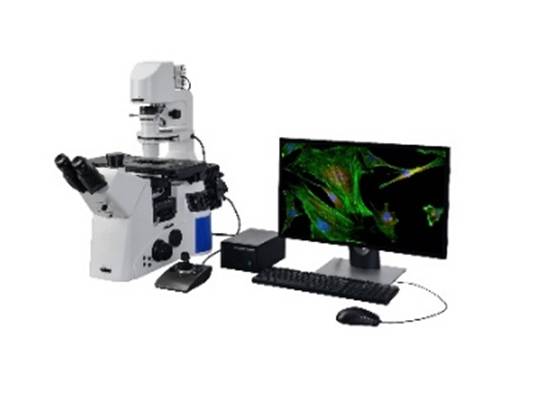

NANO PRO™ SMK-1032 Biological Microscope Machine
NANO PRO™ SMK-1032 Motorized Autofocus Inverted Biological Fluorescent Microscope is a research level microscope which is specially designed for medical and health units, universities, research institutes to observe cultured living cells. It adopts an Infinite optical system and ergonomic design.
Users can use software and operating handle(joystick) to control the motorized condenser, motorized stage, motorized nosepiece, motorized focusing, motorized fluorescent filter blocks. The microscope also have autofocusing function. There are 3 camera ports on the microscope(trinocular head, left and right).
- Excellent optical function with infinite optical system.
- Bright field, phase contrast and DIC observation is available.
- Innovative stand structure, sharp image display, convenient and special for viewing incubating cell tissue.
- With Plan semi-APO phase contrast objective, Making Viewing Field Flatter and Brighter, Contrast Sharper, Living Cell Observing easier.
- The angle of transmitted illumination arm can be adjusted.
- Motorized condenser, motorized stage, motorized nosepiece, motorized focusing, motorized fluorescent filter blocks. The microscope also have autofocusing function.
Application
NANO PRO™ SMK-1032 Motorized Autofocus Inverted Biological Fluorescent Microscope can be used by medical and health units, universities, research institutes for observations of micro-organisms, cells, bacteria and tissue cultivation. It can be used for continuous observation of process of cells, bacteria grow and divide in the culture medium. Videos and images can be taken during the process. This microscope is widely used in cytology, parasitology, oncology, immunology, genetic engineering, industrial microbiology, botany and other fields.
* NIS60 Infinite Optical System
* Trinocular head with Bertrand lens, inclined at 45°, Interpupillary 47-78mm, 3 position beam split ratio: 50/50, 100/0, 0/100
* Eyepiece SW10×/25mm, φ30mm
* Motorized 6-hole nosepiece with DIC slot (DIC for transmitted and reflected)
* Infinite Plan semi-APO phase contrast objective10X,20X,40X
* Motorized Long working distance condenser, NA0.55
* 5W LED illumination
* Motorized auto focusing mechanism
Brand: NANO PRO™
Manufacturer: NANOSSR LLC
NANOSSR offers a variety of Lab Microscope Machines. Please contact us for more information.
