Kemet Ultrasonic Cleaners
Buy Kemet Products from NANOSSR at the best value.
NANOSSR offers metallographic consumables from Kemet

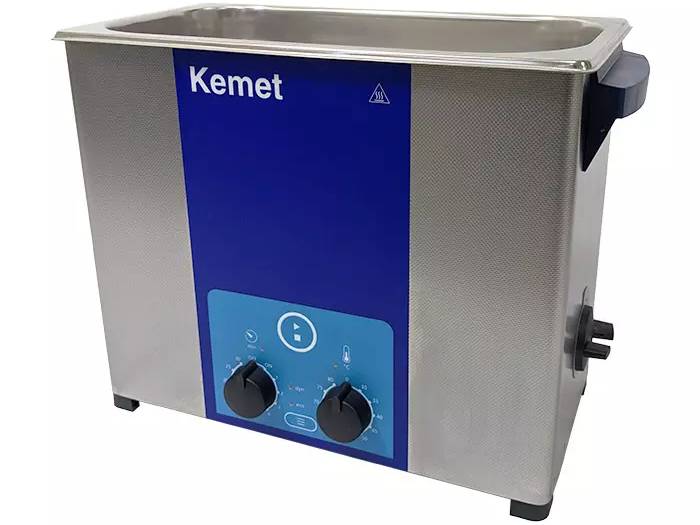

The K-Sonic Benchtop ultrasonic cleaners are available in 3 sizes the K-sonic 6, 12 & 30, catering for all your smaller component cleaning requirements. All tanks can be heated, starting at 30°C and increasing by 5 °C increments up to a maximum temperature of 80°C, an LED display light indicating when the set temperature is achieved. The K-sonic features a continuous ON mode, which enables continuous running for up to 6 hours, as well as individual 1-5 minutes, increasing to 5 minutes increments after up to a 30-minute cycle time. A small audio buzz alerts the operator when the cleaning cycle ends.
The tank, basket and housing are fabricated from stainless steel, the cleaner standing on four non-slip feet to ensure any pooling water is kept away from the electronics. A waste valve at the back is controlled by a side-mounted handle. The K-sonic benchtop cleaners have practical carry handles and the lid can be also used as a drip tray for loading and unloading.
Operating at 37Khz the switchable function modes ensure the hardware performance meets your process requirements, Eco mode is for cleaning sensitive materials. The ultrasonic cavitation operates with less power to minimise cavitation damage on soft materials whilst also reducing the noise level and mechanical impact on the tank, thus increasing the life of the tub. Dynamic mode optimises the sound filed distribution ensuring peak performance for stubborn hard-to-remove contamination.
The new K-Sonic basket design features a punched pattern on the base and side walls enabling the operator to set up a hoist of different fixturing options by using the available accessory ensuring a solution to challenging fixture requirements.
| Technical information | K-Sonic 6 | K-Sonic 12 | K-Sonic 30 |
|---|---|---|---|
| SKU# | 359482K | 359484K | 359486K |
| Tank total volume (l) | 5.9 | 12.9 | 27.5 |
| Recommended tank operating capacity (l) | 4.3 | 10 | 22 |
| Ultrasonic power effective (W) | 150 | 200 | 300 |
| Heating power (W) | 400 | 800 | 1200 |
| Unit ext. dim. W/D/H (mm) | 370 x 225 x 280 | 380 x 315 x 330 | 575 x 375 x 330 |
| Tank int. dim. W/D/H (mm) | 280 x 130 x 149 | 275 x 215 x 199 | 475 x 270 x 199 |
| Basket int. dim. W/D/H (mm) | 255 x 105 x 95 | 250 x 195 x 135 | 450 x 255 x 135 |
| Weight (kg) | 5.1 | 7.5 | 11.0 |
| Voltage | 230V-single phase-50Hz or 110V-single phase-60Hz | ||
NANOSSR provides a wide range of metallographic consumables. Please contact us for more details.
