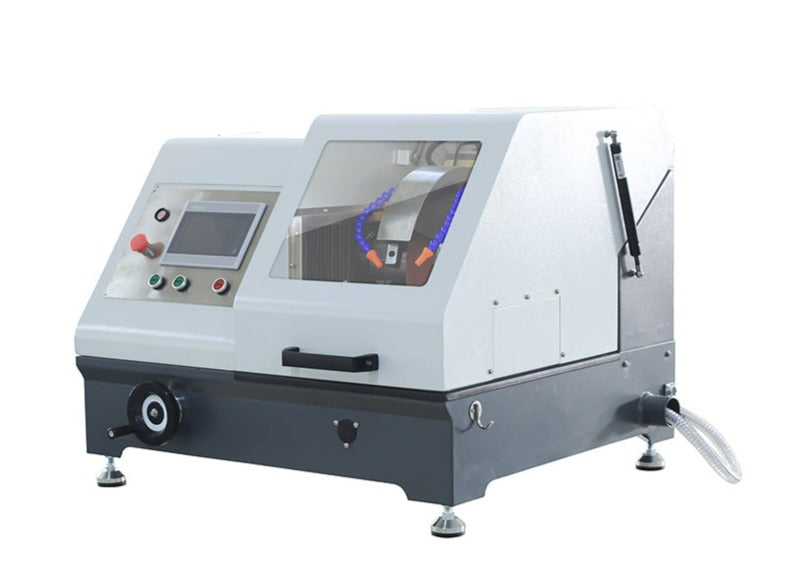

NANO PRO™ Automatic Metallographic Abrasive Cutting Machine, Max. Cutting Diameter 100mm

NANOSSR offers a metallographic abrasive cutting machine. This equipment is an automatic metallographic cutting machine known for its high reliability and robust control capabilities. It is designed for cutting a wide range of metallic and non-metallic materials to observe the metallographic core structure of the material.

Brand: NANO PRO™

Manufacturer: NANOSSR LLC

Main Features:

  • Advanced single-chip microcomputer-PLC automatic control is adopted to achieve full-automatic cutting.
  • Built-in 9 cutting modes. According to the softness or hardness of the sample material, corresponding cutting parameters for nine modes can be modified and saved.
  • During automatic operation, automatic feed and retraction are implemented, and feed and retraction speeds can be set.
  • Innovative vibration (feed-retract-feed) cutting mode ensures sufficient cooling of the cutting area of the sample, preventing sample burn.
  • Manual operation is available, unaffected by automatic mode.
  • Quick clamping mechanism for convenient sample loading.
  • Fully enclosed structure with transparent protective cover, increasing observation visibility.
  • The main components such as the clamp mouth and worktable surface are made of stainless steel.
  • Emergency stop and air switches provide safety protection for operators.

NANOSSR offers various metallographic cutting machines with different capacities, please contact us for more information. Extra cutting fluid and diamond/CBN blades are also available upon request.

                                  Technical Specifications:

                                  SKU

                                  MA1354

                                  Cut-off Blade Size

                                  350x32x2.5 mm (14 inch)

                                  Arbor Size

                                  32 mm

                                  Cutting Diameter

                                  Max. 100 mm

                                  External Cooling Circulation Device Included

                                  40L water tank

                                  Disc Speed

                                  2800 RPM

                                  Cutting Feed Speed

                                  0.01-3 mm/s

                                  Y-axis Movement

                                  200mm

                                  X-axis Movement (Optional)

                                  30mm

                                  Operation

                                  Automatic/manual wheel feed

                                  Control mode

                                  Touch Screen and Analog Control

                                  Motor Power

                                  4 kW

                                  Power Voltage Supply

                                  208 V 60 Hz 3-phase

                                  Outer Dimensions

                                  970x950x760 mm

                                  Weight

                                  200 kg
