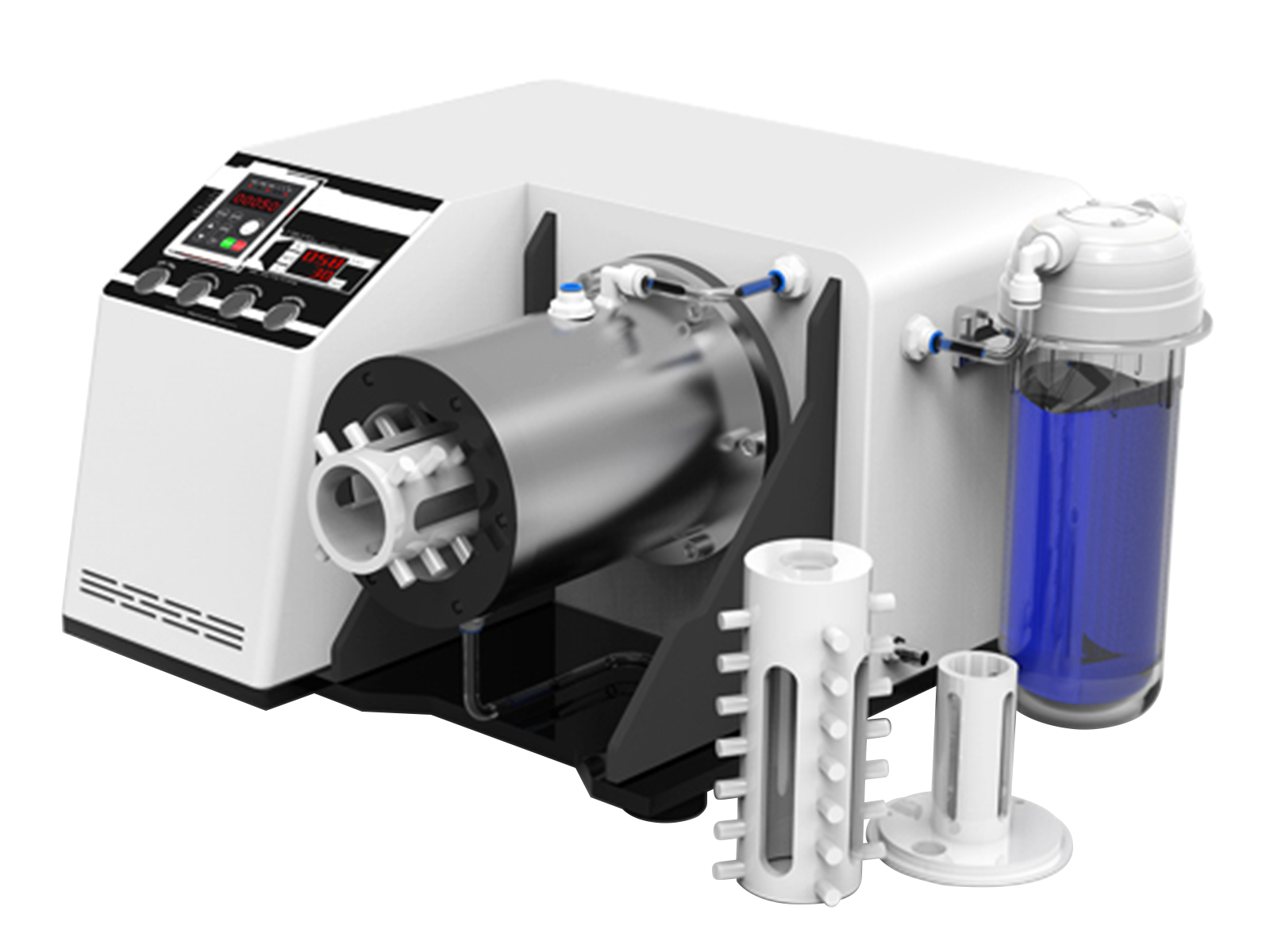

NANO PRO™ Laboratory Benchtop Nano Sand Mill
NANO PRO™ Laboratory Benchtop Nano Sand Mill uses 0.1-1 mm zirconia beads, capable of grinding up to 1000 ml per batch or continuous grinding for over 2000 ml. It is suitable for chemicals, lithium batteries, medical, geology, biology, and research.
- High grinding efficiency: Achieves nano-level fine grinding, suitable for various hard materials.
- Small batch processing: Ideal for efficient grinding of small sample batches.
- Ease of operation: Simple to operate, designed for laboratory environments.
- High safety: Equipped with multiple safety features for secure operation.
Brand: NANO PRO™
Manufacturer: NANOSSR LLC
NANOSSR offers a variety of Grinders. Please contact us for more information.
Specifications:
| SKU# | MA0937 |
| Processing Principle | Frictional force, impact force, shear force |
| Sample Characteristics |
Liquids, suspensions, medium to low viscosity |
| Processing Types | Grinding, dispersion, mixing |
| Grinding Chamber Volume | 1000mL |
| Grinding Chamber Material | Zirconia |
| Grinding Media Material | Zirconia |
| Chamber Lid Material | Zirconia |
| Cooling Sleeve Material | 304 Stainless Steel |
| Grinding Media Diameter | 0.1-1mm |
| Grinding Method | Wet grinding |
| Sieve Particle Size Range | 1-50nm |
| Speed | 2000rpm |
| Control Method | Variable frequency control |
| Circulating Cooling System | Yes |
| Cooling Medium | Cooling liquid |
| Sample Circulation System | Yes |
| Circulation Flow Rate | 8 L/min |
| Micro Sample Disperser | Yes |
| Disperser Speed | 1800rpm |
| High Borosilicate Sampling Cup | Yes |
| Sampling Cup Volume | 2500mL |
| Disperser Stand Material | 304 Stainless Steel |
| Quick-Detach Cooling Liquid Bottle | Yes |
| Main Functions | Continuous, intermittent, forward and reverse alternating grinding | Timer | Speed control | Circulating cooling | Sample circulation |
| Additional Functions | Circulating timer, heat dissipation, sampling, dispersion |
| Electrical Description | 100-120V/200-240V AC ,50-60Hz, 1100W |
| Net Weight | 85kg |
| Dimensions (mm) | 470×470×290 (W*L*H) |
| Certificates | CE / ISO9001 |
