Details
TDS Download SDS Download

NANO PRO Vertical Drive Translation Stages, Travel 25mm

SKU:
TS-VD-50
SHIPPING:
Piece
IF YOU ARE INTERESTED IN A QUOTE FOR A LARGE QUANTITY, PLEASE CONTACT US
Email: Marknanossr@gmail.com
or
Get A Quotation

NANO PRO Vertical Drive Translation Stages, Travel 25mm

Piece 1
Request a quotation.

Contact Us

Global Head Office

Email: Marknanossr@gmail.com

Tel：+86 15606950920

Wechat: 15606950920

Address:  Building 1, No. 39 Xinchang Road, Haicang District, Xiamen City, Fujian Province, China

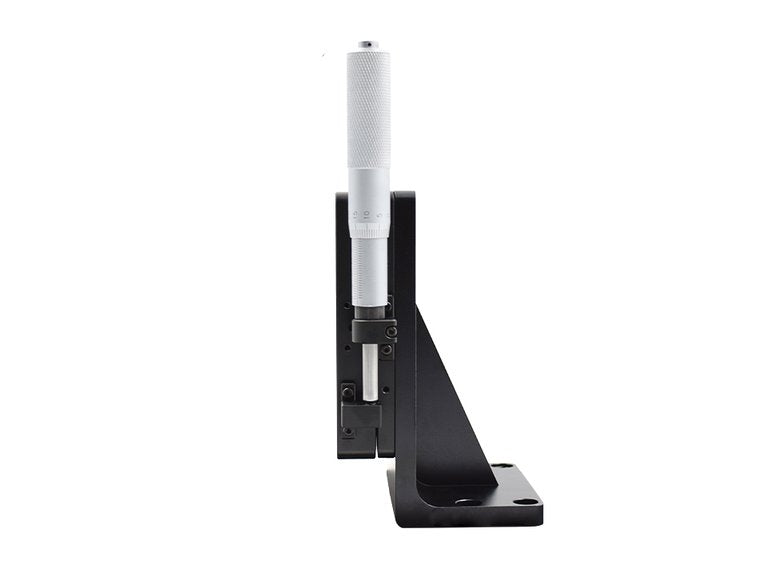

NANO PRO™ Vertical Drive Translation Stages, Travel 25mm

NANOSSR offers Travel 25mm, Vertical Drive Translation Stages. These are precision translation stages. These 50 mm travel translation stages feature a full aluminum body with crossed roller bearings for precision motion, high load capacity, and low angular deviation. The platform size is 90x115mm.

Parameters

Driving Direction Vertical Drive
Thickness (mm) -
Travel (mm) ±25.0
Platform Size (mm) 90 x 115
Bearing Type Crossed Roller Bearings
Resolution (μm) 10
Yaw (") 50
Pitch (") 50
Horizontal Load Capacity (kg) 5
Weight (kg) 1.35
Material Aluminum


NANOSSR can offer a variety of optomechanical components, with different size, freedom of regulation and optical elements combination. Please contact us for customization or bulk orders.
