NANO PRO Round Continuously Variable Metallic Neutral Density Filters

SKU:
AB7CVMNDF-10-0.0-1.0
SHIPPING:
Piece
IF YOU ARE INTERESTED IN A QUOTE FOR A LARGE QUANTITY, PLEASE CONTACT US
Email: Marknanossr@gmail.com
or
Get A Quotation

NANO PRO Round Continuously Variable Metallic Neutral Density Filters

Piece 1
Request a quotation.

Contact Us

Global Head Office

Email: Marknanossr@gmail.com

Tel：+86 15606950920

Wechat: 15606950920

Address:  Building 1, No. 39 Xinchang Road, Haicang District, Xiamen City, Fujian Province, China

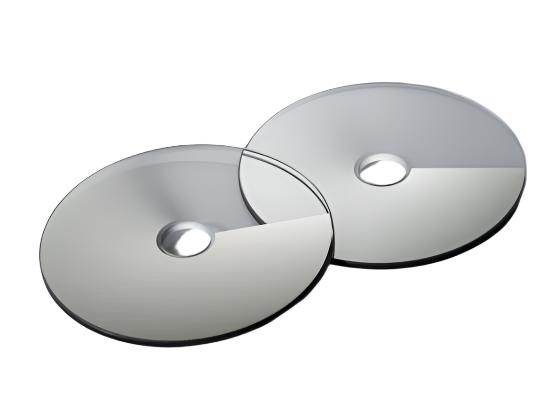

NANO PRO™ Round Continuously Variable Metallic Neutral Density Filters

NANOSSR offers Round Continuously Variable Metallic Neutral Density Filters. Circularly variable neutral density filters are designed to simplify attenuation and beamsplitting from VIS to near IR. The optical density gradually varies around a 270 circle for convenient attenuation adjustment by simply rotating the filter. Attenuation is achieved by a thin Ni-Cr-Fe film, allowing these attenuators to withstand moderate laser energy as well as to act as variable beamsplitters.

Circularly variable ND filters are available with BK7 substrates for general laboratory use, or with UV fused silica substrates for maximum thermal stability. Although the coatings are optimized for 400-700nm, they will operate from 400-1100nm with only minor losses.

NANOSSR can offer a variety of optical components. Please contact us for customization or bulk orders.

Technical Data:

Material BK7 fine annealed
Outside Diameter
φ50±0.25
Center Hole Diameter 8±0.25
Clear Aperture >80%dimeter
Linearity of Optical Density ±5% at 632.8nm
Coating

S1:Ni-Cr-Fe

S2:Broadband AR coated, Rave
Relative Density Range 0.0-1.0
Tmin T=10%
