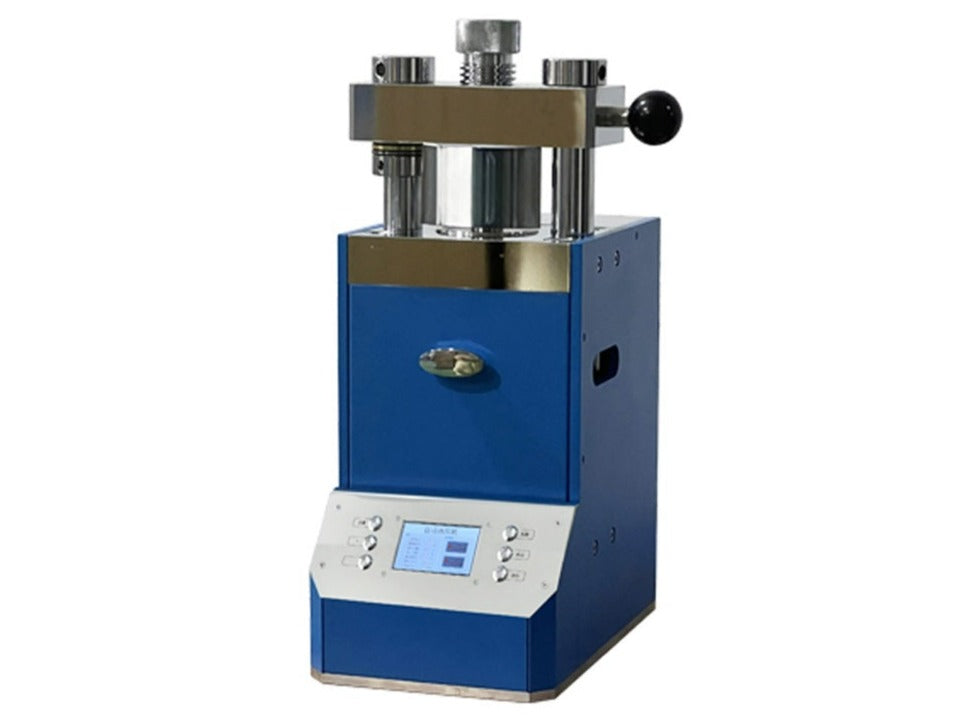

NANO PRO™ 60T Automatic Hot Isostatic Press (HIP) (200 ℃)
Hot isostatic pressing (HIP) is a materials fabrication process in which a starting powder or a premolded shape is simultaneously subjected to both high temperatures and high isostatic pressures, using a liquid transfer medium. The principal factor that distinguishes HIP from other processing techniques is the use of liquid as the pressure-transmitting medium to effect equivalent changes in three dimensions in the material that it surrounds.
At NANOSSR, we are experts at powder processing materials, ball milling equipment and accessories. We offer a variety of ball mill and jars to break down the particle size before the pressing.
If you need other maximum pressure or customized design, please contact NANOSSR.
Specifications:
| Product SKU # | PR0363 |
| Pressure Range | 0-60 Tons |
| Piston Diameter | ⌀200 mm |
| Working Process | Programmed pressurization- programmed holding-timed pressure relief |
| Pressure Holding Time | ≥1 seconds (no limit) |
| Display | 7" LCD screen |
| Heating Temperature |
Room Temperature to 200 ℃ |
| Isostatic Pressure | 300 MPa |
| Isostatic Pressure Chamber | ⌀50 x 150 mm (M x N) |
| Bottom Cylinder Traveling Distance | 50 mm |
| Outer Dimensions | 330 x 580 x 720 mm (L x W x H) |
| Net Weight | 290 kg |
| Power Supply | 110 V 60 Hz |
| Power | 3000 W |
| Warranty | Limited one year warranty, not responsible for the damage caused by improper use |
| Note | Please clean the press after each use to ensure the best performance and longer life time |
