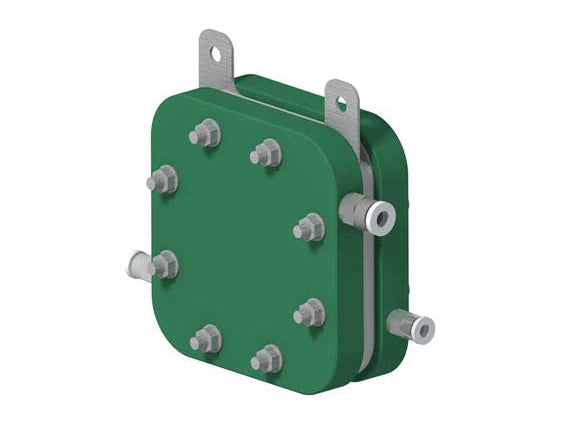

NANO PRO™ Complete Stainless Steel Alkaline Water Electrolysis Stack - 25cm², Square Electrode, 1 Cell
Overview
Alkaline Water Electrolysis (AWE) stacks are specifically designed to achieve high-efficiency hydrogen generation through the process of electrolysis. These units operate using a basic solution composed of 30 wt% potassium hydroxide (KOH), which enhances their versatility and effectiveness across various industrial application. This AWE stack is supplied as a fully assembled water electrolyzer stack, including the MEA component.
Features
- High-Efficiency Nickel Electrodes: Designed to maximize hydrogen production
- Customizable Cell Configuration: Adjustable from 1 to 20 cells, allowing for application-specific setups
- End Plate Materials: Stainless Steel 304
Applications
- Renewable Energy Conversion: Captures and stores excess energy efficiently
- Educational Purposes: Ideal for laboratory experiments and instructional use
- Analytical Equipment: Produces high-purity hydrogen for precise laboratory analyses
- Fuel Supply: Provides hydrogen fuel for a range of commercial and industrial applications
- Fuel Cell Support: Ensures a dependable hydrogen supply for fuel cell systems
- Industrial Applications: Adaptable for any process requiring pure hydrogen
General Technical Information
| Current density | 0.6-3A/cm2 |
| Electrode | Nickel composite |
| Electrolyte | KOH, 30wt% |
| Temperature range | 15~80℃ |
| Membrane | PPS membrane |
| Polar plate material | Nickel (standard) |
| Chamber material | Engineering plastic (standard), PEEK |
| End plate material | Stainless Steel 304 |
Specification
| SKU# | Size | Stack No. | Voltage | Electrode size |
| MA2494 | 160x160x38mm | 1 | 1.6-2V | Cathode 50x50mm, Anode 57x57mm |
NANOSSR offers a variant of Water Electrolyzer Stacks. Please contact us for more information.
