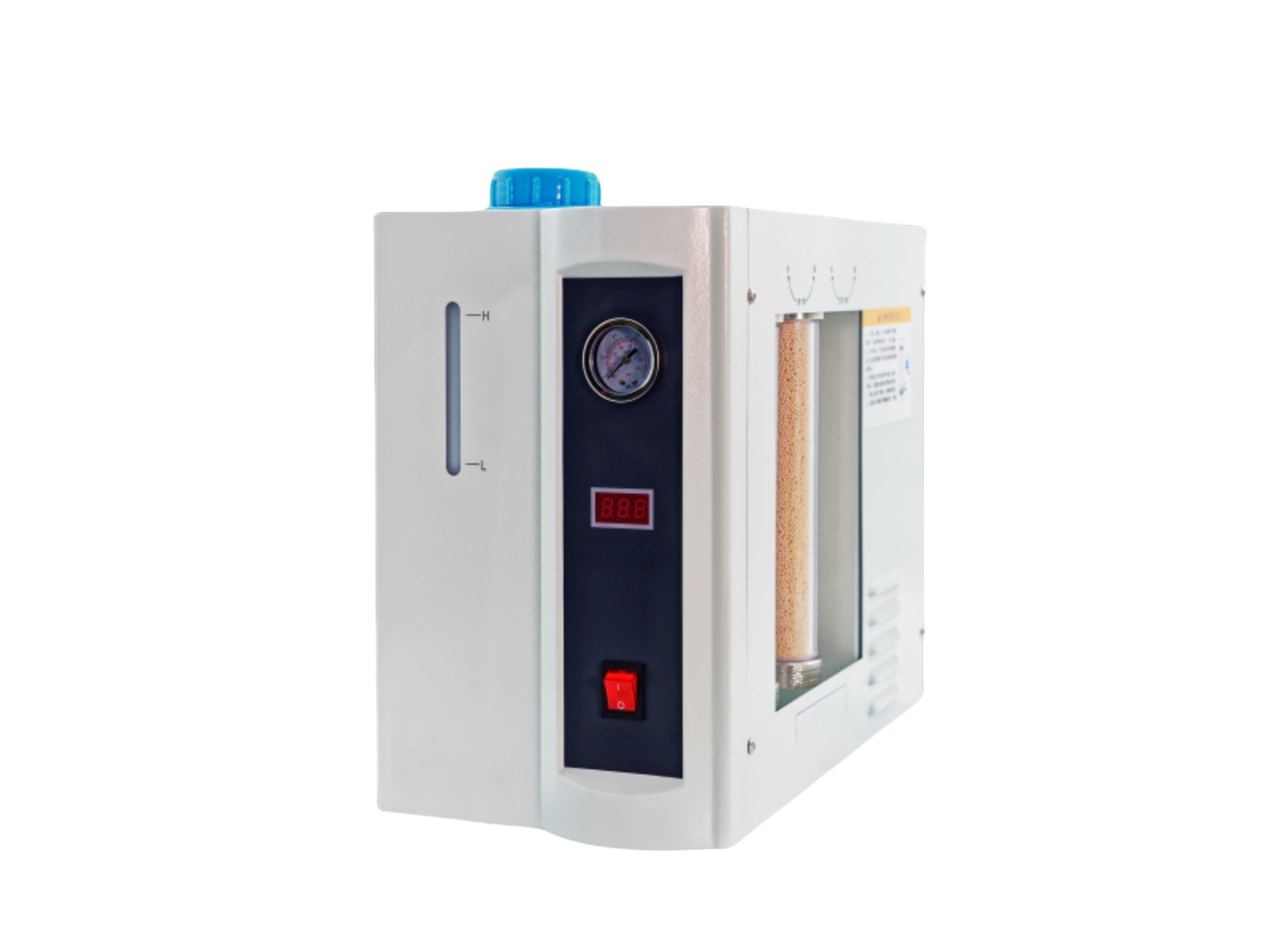

NANO PRO™ Laboratory Compact Proton Exchange Membrane (PEM) Hydrogen Generator, Max. Flow Rate 210mL/min
This Hydrogen Generator with max. flow rate 210mL/min is used to generate ≥99.999% purity hydrogen by PEM technology. The proton exchange membrane only allows water and positive ions to cross between compartments. When a direct current is utilized in the electrolyzer, water is supplied to either the anode or oxygen electrode and undergoes oxidation, producing oxygen and protons. Simultaneously, electrons are released. The H+ ions then travel through the PEM to reach the cathode, or hydrogen electrode, where they combine with electrons from the opposite part of the circuit and form hydrogen gas.
It is a versatile product used in various applications such as gas chromatography (GC), ICP-MS as a collision gas, hydrogenation reactors, fuel cells, and emissions test equipment. It offers a practical alternative to traditional gas cylinders, making it the preferred solution for on-site gas production in laboratory settings.
Features and Advantages:
- Produce hydrogen by electrolysis pure water, no corrosion and no pollution.
- Unnecessarily to use the dangerous and expensive hydrogen cylinders.
- Higher hydrogen purity (99.999% to 99.9999%), stable flow, safe and easy to use, own several alarms (over pressure alarm, water shortage alarm, water accumulated alarm)
- Easy to operate, safe and reliable, simple daily use and maintenance.
-
High electrolysis efficiency, long-term use, purity and flow rate do not decay.
- Can meet requirements of all kinds of GC.
Brand: NANO PRO™
Manufacturer: NANOSSR LLC
NANOSSR offers a variant of Hydrogen Generator. Please contact us for more information.
Specifications:
| SKU | MA2250 |
| Hydrogen purity | ≥99.999% |
| Output flow rate (mL/min) | 0-210 |
| Output pressure (MPa) | 0.02-0.4 |
| Pressure stability (MPa) | |
| Input power (W) | |
| Dimensions (L*W*H, mm) | 420×227×352 |
| Power supply voltage (V) | AC 110, 60Hz |
| Water quality requirements | Deionized water or secondary distilled water (resistivity ≥ 1MΩ) |
| Built-in water storage tank | 2L capacity |
| Drying mechanism | Molecular sieve drying cylinder |
| Machine weight (Kg) |
