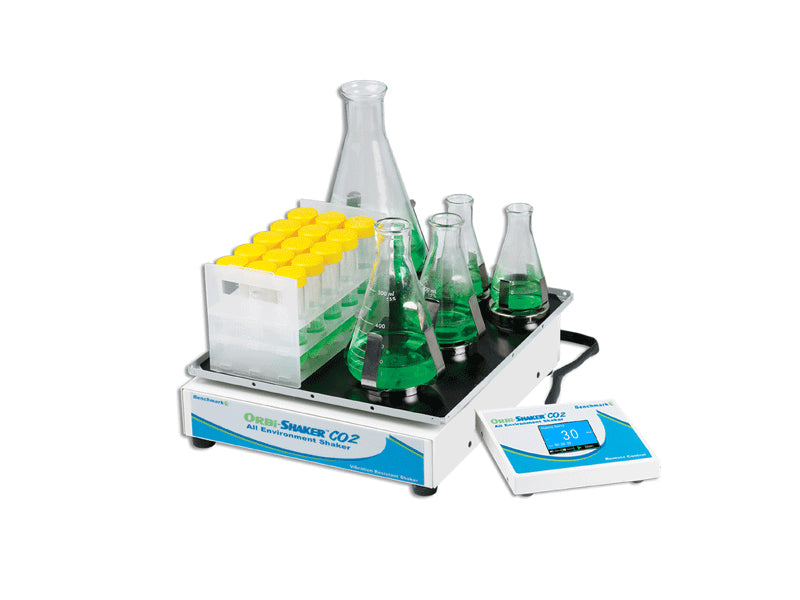

Benchmark Orbi-Shaker™ CO2
- Designed to fit and maximize capacity in most CO2 incubators
- Remote control, adjust without disrupting the CO2 environment
- Horizontally circular 19mm orbit for aeration & mixing
- Instantly exchange flask clamps with MAGic Clamp™ accessories (PATENTED)
The new Orbi-Shaker CO2 series is designed for shaking, mixing& aeration applications in extreme environments, including CO2 incubators. It can withstand temperatures from 0 to 60°C and humidity levels up to 100%.
To avoid contamination, unintentional release of gas or deviations from protocol, all settings are adjusted via the included remote control module. This module can be stored outside of the chamber and connects to the shaker via a flat (1mm thickness) cable, that easily passes through a port or underneath an incubator door without compromising the seal. This allows for user adjustment of run time or mixing speed without opening the chamber door(s).
The instrument is supplied with a non-slip rubber mat platform. In addition, convenient MAGic Clamp™ platforms (of multiple sizes) are also available for use with Erlenmeyer flasks and test tube racks. The unique magnetic attachment method (PATENTED) has been widely recognized as the easiest way to instantly change between flask clamps of different sizes.
Purchase Benchmark Orbi-Shaker Accessories Through NANOSSR Here!
Model
| SKU | Description |
| BT4001 | Orbi-Shaker™ CO2 with remote controller and rubber mat platform (13"x12"), 115V |
| BT4001-E | Orbi-Shaker™ CO2 with remote controller and rubber mat platform (13"x12"), 230V |
| BT4011 | Orbi-Shaker™CO2 XL orbital shaker with flat mat platform, 115V |
| BT4011-E | Orbi-Shaker™ CO2 XL orbital shaker with flat mat platform, 230V |
Specifications
| Speed Range | 30 to 300 rpm | |
| Speed Increment | 1 rpm | |
| Orbit | 19mm | |
| Timer | 1 min. to 99 hr or continuous | |
| Ambient Operating Temp. | +0°C to +65°C | |
| Warranty | 2 Years | |
| BT4001 Orbi-Shaker CO2 | ||
| Platform Size | 13 x 12 in. / 33 x 30 cm | |
| Load Capacity | 1 x 2L or 5 x 1L | |
| Dimensions (in) | 11.9 x 13.4 x 3.5 | |
| Dimensions (cm) | 30 x 34 x 9 | |
| Weight | 25lbs (11.5kg) | |
| Cord Length | 60.5in / 154 cm | |
| Electrical | 115 or 230V 50-60Hz; 50W | |
| BT4011 Orbi-Shaker CO2 XL | ||
| Platform Size | 16 x 16.5 in. / 40 x 42.5 cm | |
| Load Capacity | 5 x 2L or 9 x 1L | |
| Dimensions (in) | 17 x 18 x 5 | |
| Dimensions (cm) | 43 x 45.75 x 12.7 | |
| Weight | 50lbs (23kg) | |
| Cord Lenght | 60.5 / 154 cm | |
| Electrical | 115 or 230V 50-60Hz; 50W |
