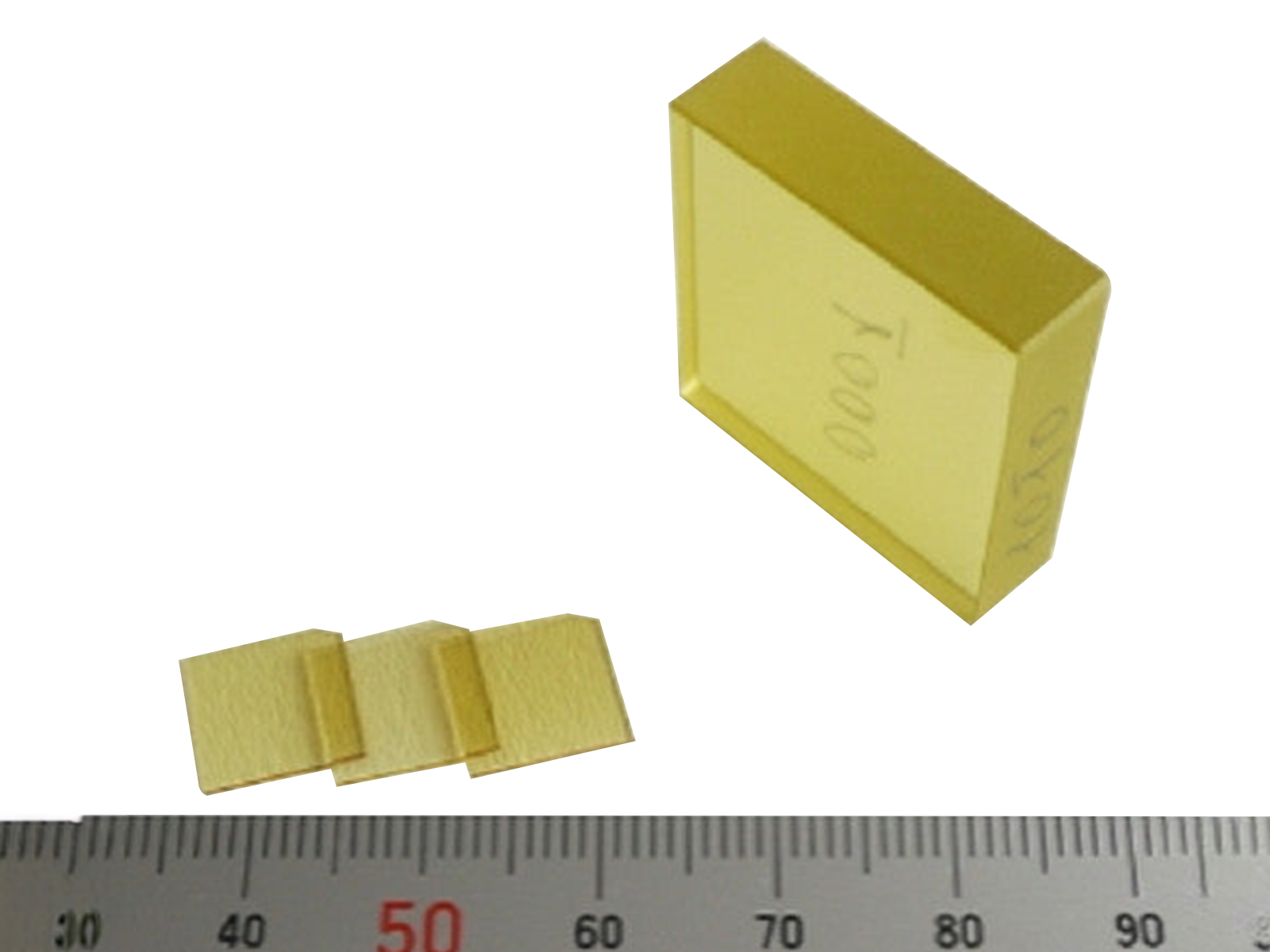

NANO PRO ZnO Zinc Oxide Crystal Substrates

SKU:
SU1102
SHIPPING:
Piece
IF YOU ARE INTERESTED IN A QUOTE FOR A LARGE QUANTITY, PLEASE CONTACT US
Email: Marknanossr@gmail.com
or
Get A Quotation

NANO PRO ZnO Zinc Oxide Crystal Substrates

Piece 1
Request a quotation.

Contact Us

Global Head Office

Email: Marknanossr@gmail.com

Tel：+86 15606950920

Wechat: 15606950920

Address:  Building 1, No. 39 Xinchang Road, Haicang District, Xiamen City, Fujian Province, China

Zinc oxide is a wide band-gap semiconductor material. It has broad potential applications in high-efficiency semiconductor photoelectronic devices, semiconductor photocatalysis and diluted magnetic semiconductors. Because of it lattice integrity, ZnO single crystals are essential for the fabrication of high-quality ZnO-based semiconductor devices. It is also an ideal substrate material for epitaxial growth of various thin films. NANOSSR offers many options for ZnO crystals and substrates to meet customers' specific technical requirements. Please contact us to discuss your requirements with our scientists and engineers.

Main Parameters
Crystal structure
 Hexagonal
Purity 99.99%
Lattice parameters
a=3.252 A, c=5.313 A
Density
5.7 g/cm3
Hardness
4 Mohs
Melting point
1975 degree C
Thermal expansion coefficient (CTE)
6.5 x 10^-6 /K along a axis, 3.7 x 10^-6 /K along c axis
Seebeck coefficient
1200 uV/K at 300 K
Thermal conductivity
0.006 Cal/cm/K
Optical transmission
> 50% for 2mm thickness (wavelength 400nm ~ 600nm)
Crystal orientation
C plane (0001), A plane (11-20), M plane (1-100) +/-0.5 deg
Size (mm)
5x5 mm, 10x10 mm, 25x25 mm, other sizes and orientations are available upon request
Surface roughness
Ra
Surface polishing
Single side polished (SSP) or double side polished (DSP). CMP polishing on either O-face or Zn-face.
Package
Packed with class 100 clean bag in class 1000 clean room



References:

Book chapter: General properties of zinc oxide. PDF
