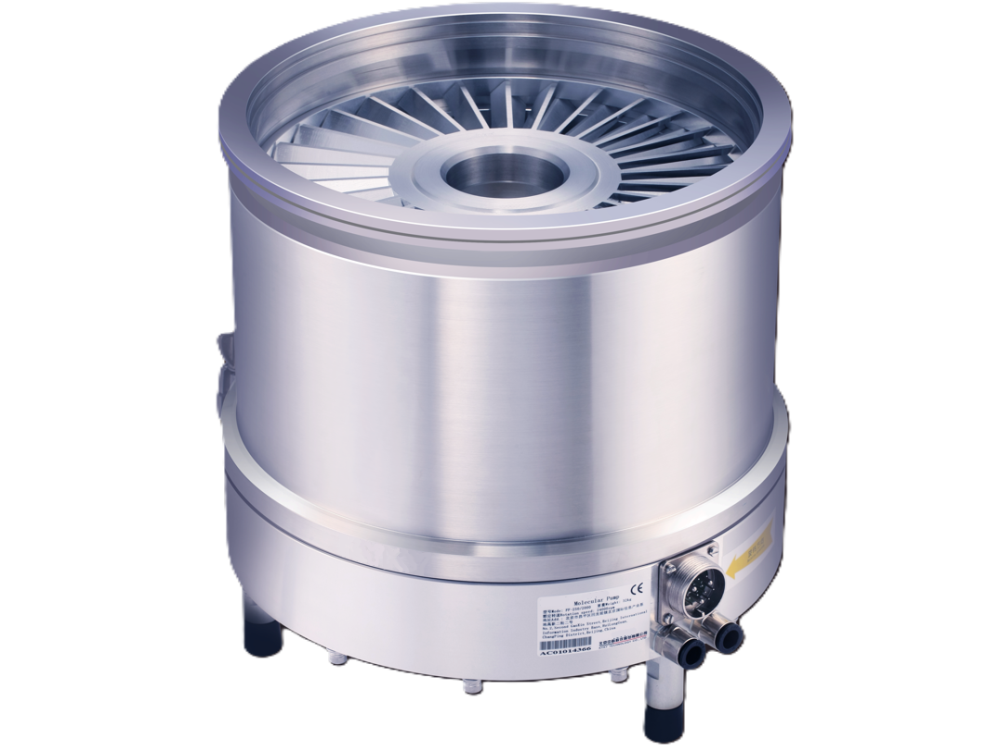

NANO PRO™ Turbo Molecular Pump, Water cooling, Grease Lubrication
Product Details:
The grease-lubrication pump is equipped with ceramic bearing, with which molecular pump products can be installed in any orientation, and only need to be maintained once every 3-5 years in normal operating conditions.
This is usually of a self-sealed structure, consisting of a bearing inner ring, a bearing outer ring, balls, holders, a sealing end cover and lubricating grease. Shafting support structure applied to the grease-lubricated ceramic bearing has advantages of simple structure, free maintenance and low power consumption.
Advantages:
the grease lubrication turbo pump is Compact structure, easy to use, less contamination to system, wide range of application and stable performance.
Applications:
The grease lubrication turbo pumps are mainly used in solar cells, Low-E glass, ITO glass, accelerators, plasma technology, lamp making, vacuum leak detection and other industries.
Specification:
| Flange（In） | ISO-K/CF 250, | Max. Fore-vacuum Pressure | N2：650 |
| Flange（Out） KF | DN50 | Gas Throughout （sccm） | N2：3200 |
| Pumping Speed( L/s） | N2：2000 | He：2400 | |
| He：1600 | H2：1850 | ||
| H2：740 | Ar：1200 | ||
| Ar：1900 | Rotation Speed （ rpm） | 24000 | |
| Compression Ratio | N2: 108 | Run-Up Time（min） | ≤9 |
| He：104 | Cooling Type,Standard | Water | |
| H2：103 | Cooling Water Consumption （ L/min） | ≥1 | |
| Ar：109 | Cooling Water Temperature（℃） | ≤25 | |
| Ultimated Pressure（Pa) | CF：6×10-7 | Power Connection:Voltage （V AC） | AC110 |
| ISO-K：6×10-6 | Max.Power Consumption （W) | ≤750 | |
| Max. Continuous Fore-vacuum pressure(Pa) | 200 | Controller Model | Pumping Speed 600-2000 L/s |
Note: You must buy a controller to use it. Controller is not included for this product.
